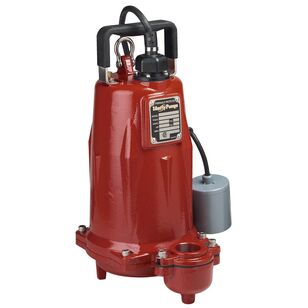

Liberty Pumps® FL100 Series FL102A-2 Submersible Effluent Pump, 208-230 V, 12 A, 60 Hz, 1 hp, Iron
Liberty Pumps® FL100 Series FL102A-2 Submersible Effluent Pump, 208-230 V, 12 A, 60 Hz, 1 hp, Iron
Liberty Pumps® Submersible Effluent Pump, FL100 Series, 208-230 V, 12 A, 60 Hz, 1 hp, 3450 rpm, 1 ph, 1-1/2 in, 2 in Discharge, 25 ft Cord Length, Insulation Class: Class B, Flange Mounting, 104 deg F, Iron Impeller, Iron, Additional Information: Automatic Operation
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,646.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLiberty Pumps®
Additional InformationAutomatic Operation
Amperage12
Amperage Rating12
Cord Length25
Discharge Size2"
Discharge Size1-1/2 ", 2 "
Discharge_Connection_TypeFNPT
Frequency Rating60
GPH6420
GPM107
Height18.25"
HP1
HP Rating1
Impeller MaterialIron
IndustryPlumbing
Insulation ClassClass B
Length11.75"
MaterialIron
Mounting TypeFlange
Phase1
Product_Family_NameFL100-Series
SeriesFL100 Series
Speed Rating3450
SwitchWide angle float
Temperature Rating104
Voltage Rating208-230
Volts208-230
Weight72 lbs.
Width11.75"
Shipping Dimensions (L x W x H)14.25" x 9.75" x 22"
Additional Information
cCSAus Certified|SSPMA Certified
Features & Benefits
- 3/4" Solids handling Heavy cast iron construction Semi-open cast iron impeller Stainless steel rotor shaft Dual shaft seals Single float, mercury-free level control Additional mounting clamp provided for optional switch mounting to pipe Fully adjustable pumping range 2" FNPT threaded discharge with 1-1/2" FNPT flange provided Quick-connect power cord - 25' length standard Available in automatic and manual models
Marketing Information
The FL100-Series by Liberty Pumps covers a wide-range of high-head pump applications. Designed with Liberty Pumps unique one-piece cast iron body and quick-connect cords in 25' standard length. The FL100-Series by Liberty Pumps is a 1 hp effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. The pump features a dual-sized threaded discharge of 1-1/2" and 2" for connection to either size pipe. Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL100-Series will provide years of reliable performance.
Liberty Pumps® FL100 Series FL102A-2 Submersible Effluent Pump, 208-230 V, 12 A, 60 Hz, 1 hp, Iron
BrandLiberty Pumps®
MFG #FL102A-2
Keller #789711
