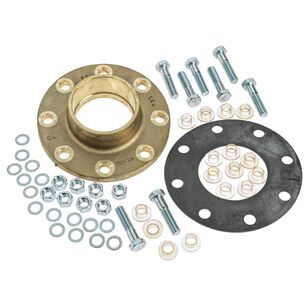

4 In Lead Free Class 125 Dielectric Flange Pipe Fitting, Solder Copper Flange, Bronze Body, Gasket, Bolt Ins, Nuts, And Bolts
4 In Lead Free Class 125 Dielectric Flange Pipe Fitting, Solder Copper Flange, Bronze Body, Gasket, Bolt Ins, Nuts, And Bolts
Dielectric Union
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,242.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
IndustryPlumbing
Shipping Dimensions (L x W x H)9" x 9" x 5"
Features & Benefits
- Buna-N gasket
- Maximum pressure is 175 psi (12.1 bar)
- Maximum temperature 180 degrees F (82 degrees C)
- Solder copper connection
Marketing Information
This 4 inch lead free class 125 dielectric flange pipe fitting is designed for commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current from connections of dissimilar metals. Ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a single bronze body tailpiece with solder copper connection with a Buna-N gasket and hardware. The maximum temperature is rated up to 180 degrees F (82 degrees C). The maximum pressure is rated at 175 psi (12.1 bar).
4 In Lead Free Class 125 Dielectric Flange Pipe Fitting, Solder Copper Flange, Bronze Body, Gasket, Bolt Ins, Nuts, And Bolts
BrandWATTS®
MFG #0121304
Keller #790587
