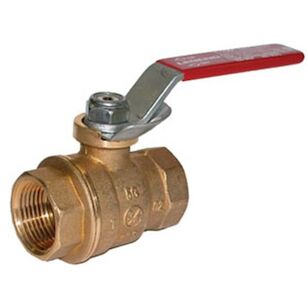

Legend Valve 101-054NL Ball Valve, 3/4 in, Female Threaded, Brass, 150 psi, 600 psi
Legend Valve 101-054NL Ball Valve, 3/4 in, Female Threaded, Brass, 150 psi, 600 psi
Legend Valve Ball Valve, 3/4 in Nominal, Female Threaded Connection, Full Port, 150 psi, 600 psi, 2.36 in Inlet to Outlet Length, 1.89 in Top to Inlet Center, Handle Operator, 28.43 Cv Flow Coefficient (Cv), Material Standard: UNS C28500, Brass Body, PTFE Seat, Brass Stem, Steel Handle, Brass Ball, PTFE Softgoods, Lead-Free
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$49.18Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLegend Valve
Ball MaterialBrass
Body MaterialBrass
Connection TypeFemale Threaded
Flow Coefficient (Cv)28.43
Handle MaterialSteel
Inlet to Outlet Length2.36
Material StandardUNS C28500
Nominal Size3/4
Operator TypeHandle
Port TypeFull
Pressure Rating150 psi, 600 psi
Seat MaterialPTFE
Softgoods MaterialPTFE
Stem MaterialBrass
Top to Inlet Center1.89
Additional Information
AISI 10060|ANSI Z21.15|ANSI/ASME B1.20.1/B16.18|ANSI/NSF 61|ASME B16.44/CGA CR91-002|CSA 9.1|MSS SP-110
Features & Benefits
- Durable lead-free forged brass body Bottom loaded blowout-proof stem Maintenance-free dual O-ring stem seal
Marketing Information
3/4" T-1001LD No Lead Forged Brass Full Port Ball Valve with Locking Device
Legend Valve 101-054NL Ball Valve, 3/4 in, Female Threaded, Brass, 150 psi, 600 psi
BrandLegend Valve
MFG #101-054NL
Keller #791493
My Part ##
Last Ordered#
$49.18Â /Â ea
