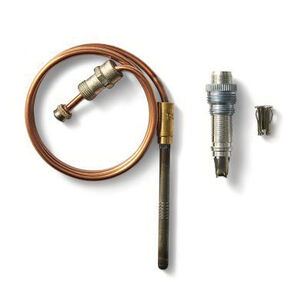

resideo Q340A1074 Thermocouple, MNPT
resideo Q340A1074 Thermocouple, MNPT
resideo Thermocouple, 30 mV, 11/32-32 Connection, MNPT Connection, 0.02 Ohm Resistance, 780 to 1400 deg F, 24 in L, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$30.93 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Connection Size11/32-32
Connection TypeMNPT
Dimensions24 " L
Domestic/ImportImport
IndustryHVAC
Resistance0.02
Temperature Rating780 to 1400
Voltage Rating30
Features & Benefits
- Push-in clip, split nut or adapter assembly available (depending on model) for easy pilot burner installation Male nut connector for Pilotstat® safety control power units
Documents
Marketing Information
The Q340A thermocouples sense the pilot flame on standing pilot gas fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate 30 mV.
resideo Q340A1074 Thermocouple, MNPT
BrandHoneywell
MFG #Q340A1074/U
Keller #79407
My Part ##
Last Ordered#
$30.93 / ea
