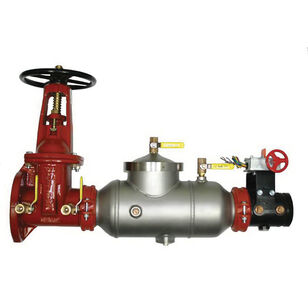

Apollo® DCLF4A Series 4ALF-105-A2F Double Check Valve Backflow Preventer With Ball Valve and SAE Threaded Test Cocks
Apollo® DCLF4A Series 4ALF-105-A2F Double Check Valve Backflow Preventer With Ball Valve and SAE Threaded Test Cocks
Apollo® Double Check Valve Backflow Preventer With Ball Valve and SAE Threaded Test Cocks, DCLF4A Series, 1 in Nominal, SAE Connection, 175 psig Pressure, Media: Water, 14-5/8 in Inlet to Outlet Length, 4 in Top to Inlet Center, Handle Operator, Material Standard: C89836, Bronze Body, Lead-Free/Contains Lead: Lead-Free, 33 to 180 deg F, Dimensions: 3-1/4 in W, Domestic/Import: Domestic, Additional Information: 300 Stainless Steel Spring, Bronze Shut-Off, Testcocks, Chloramine-Resistant Silicone Seat Disc
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,712.96 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information300 Stainless Steel Spring, Bronze Shut-Off, Testcocks, Chloramine-Resistant Silicone Seat Disc
ApplicationFor potable water, residential, fire protection, datacenters, utility and industry
Body MaterialBronze
Connection TypeSAE
Dimensions3-1/4 " W
Domestic/ImportDomestic
IncludesStandard Y-Strainer
Inlet to Outlet Length14-5/8
Material StandardC89836
MediaWater
Nominal Size1
Operator TypeHandle
Pressure Rating175
SeriesDCLF4A Series
Temperature Rating33 to 180
Top to Inlet Center4
Warranty5 Year
Additional Information
ASSE 1015-2011|AWWA C510|CSA B64.5
Features & Benefits
- Low pressure loss Captured spring cartridge check valves Compact, yet easy-to-maintain Ball valve shut-off with stainless steel handles and nuts standard Top access for fast testing and maintenance Threaded testcock protectors Corrosion-resistance No special tools are required Chloramine-resistant elastomers Designed, cast, machined, assembled and tested in the USA
Documents
Marketing Information
The Apollo® model DC4A and DCLF4A Series lead-free and non-lead-free double check valves prevent contamination of the potable water supply due to back siphonage or back pressure from substances that are objectionable to the potable water supply, but non-health hazards. The top accessed modular check valve cartridges provide captured springs, replaceable seats and reversible silicone seat discs. This made in America assembly features ball valve shut-off with stainless steel handles and nuts as standard and carries the 5 years Apollo® factory warranty.
