• Anti-rotation/anti-vibration pinned float creates space between float and air vent wall to prevent float hang-up from debris or variations in separator installation orientation Anti-corrosion coalescing mesh constructed of glass filled nylon More resistant to dissolved oxygen and acidic fluids than plated metals Corrosion-resistant all components highly-resistant to hydronic chemical additives or unstable pH fluid Large diameter chamber slows fluid flow dramatically Combines with concentric, sharp edged mesh design to cause micro-bubbles to efficiently collect and coalesce Highly effective automatic air elimination Robust stainless steel float linkages reliable float alignment even during turbulent conditions such as filling from bottom

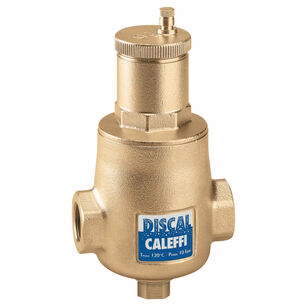

Air separator with service check air separator with 1/2 in service check valve (code 561402A) to mount expansion tank on bottom thread. Stainless steel float guide pin and linkage. Glass reinforced nylon internal element. Connection 3/4 in FNPT. Maximum working pressure 150 psi. Medium temperature range 32 to 250 deg F. Material brass.
