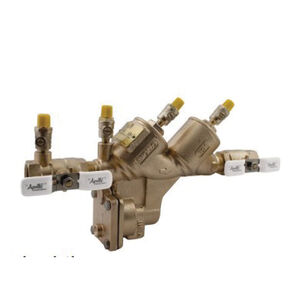

Apollo® RPLF4A Series 4ALF-204-A2F Reduced Pressure Backflow Preventer, 3/4 in, SAE, Lead-Free
Apollo® RPLF4A Series 4ALF-204-A2F Reduced Pressure Backflow Preventer, 3/4 in, SAE, Lead-Free
Apollo® Reduced Pressure Backflow Preventer, RPLF4A Series, 3/4 in Nominal, SAE Connection, Full Port, 175 psig Pressure, Media: Water, 12-5/8 in Inlet to Outlet Length, 3-1/2 in Top to Inlet Center, Handle Operator, Material Standard: C89836, Bronze Body, Lead-Free/Contains Lead: Lead-Free, 33 to 180 deg F, Dimensions: 7-3/8 in H, Domestic/Import: Domestic, Additional Information: 300 Stainless Steel Spring, Bronze Shut-Off, Testcocks, Chloramine-Resistant EPDM O-ring, Chloramine-Resistant Silicone Seat Disc, Glass Filled PPO Check Module, Nitrile and Nylon Diaphragm, Stainless Steel Ball Valve
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,597.10 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information300 Stainless Steel Spring, Bronze Shut-Off, Testcocks, Chloramine-Resistant EPDM O-ring, Chloramine-Resistant Silicone Seat Disc, Glass Filled PPO Check Module, Nitrile and Nylon Diaphragm, Stainless Steel Ball Valve
ApplicationFor potable water, residential, fire protection, datacenters, utility and industry
Body MaterialBronze
Connection TypeSAE
Dimensions7-3/8 " H
Domestic/ImportDomestic
IncludesStandard Y-Strainer
IndustryPlumbing
Inlet to Outlet Length12-5/8
Lead-FreeYes
Material StandardC89836
MediaWater
Nominal Size3/4
Operator TypeHandle
Port TypeFull
Pressure Rating175
SeriesRPLF4A Series
Temperature Rating33 to 180
Top to Inlet Center3-1/2
Warranty5 Year
Additional Information
ASSE 1013-2011|AWWA C511|CSA B64.4|Federal Public Law 111-380|NSF/ANSI 61 Water Quality|NSF/ANSI 372
Features & Benefits
- Maximum protection against back-pressure/back-siphonage Modular check valve cartridges with easily replaced parts Reversible/removable chloramine-resistant silicone seats Low head pressure loss Top-mounted test cocks Threaded testcock protectors Internal sensing passage Modular captured spring relief valve Standard with full-port ball valves with stainless steel handles Corrosion-resistance
Documents
Marketing Information
The Apollo® model rp4a/rplf4a lead-free and non-lead-free Series reduced pressure backflow preventers provide maximum protection against back siphonage or back pressure from substances that are hazardous to the potable water supply. the top accessed modular check valve cartridges provide captured springs, replaceable seats and reversible silicone seat discs. this made in America assembly features ball valves with stainless steel handles and trim as standard and carries the 5 years Apollo® factory warranty.
Apollo® RPLF4A Series 4ALF-204-A2F Reduced Pressure Backflow Preventer, 3/4 in, SAE, Lead-Free
BrandApollo®
MFG #4ALF204A2F
