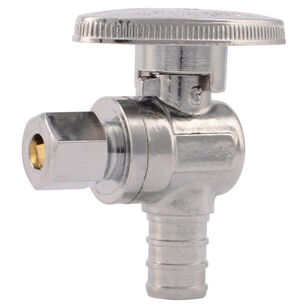

SharkBite™ 23056LF Supply Stop Valve, 1/2 x 1/4 in Nominal, PEX, Quarter-Turn Handle Actuator, 200 psi, Brass Body
SharkBite™ 23056LF Supply Stop Valve, 1/2 x 1/4 in Nominal, PEX, Quarter-Turn Handle Actuator, 200 psi, Brass Body
SharkBite™ Supply Stop Valve, 1/2 x 1/4 in Nominal, PEX Connection, 200 psi, Material Standard: ASTM F1807, ASTM E84, Polymer Softgoods, Brass Body, Quarter-Turn Handle Actuator, 160 deg F, Domestic/Import: Domestic, Additional Information: Angled Configuration, Lead-Free, Water Media, Water Service
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$16.75 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSharkBite™
Actuator TypeQuarter-Turn Handle
Additional InformationAngled Configuration, Lead-Free, Water Media, Water Service
ApplicationFor PEX and PE-RT pipe
Body MaterialBrass
Connection TypePEX
Domestic/ImportDomestic
IndustryPlumbing
Material StandardASTM F1807, ASTM E84
Nominal Size1/2 x 1/4
Pressure Rating200
Softgoods MaterialPolymer
Temperature Rating160
Shipping Dimensions (L x W x H)7.99" x 5" x 1"
Additional Information
ASME A112.18.1|CAN/ULC S102.2|CSA B125.1|NSF/ANSI/CAN 61, 372
Features & Benefits
- Compatible with PEX and PE-RT pipes Made from lead-free DZR brass Connects to PEX pipe with copper crimp rings or stainless steel clamps Minimum working temperature 33 deg F at 160 psi, maximum working temperature 200 deg F at 80 psi 1/4-turn valve for easy on/off flow control
Marketing Information
Used where the water pipe enters the room to allow for easy shut-off of water flow to the end fixture allowing for maintenance and repair without having to turn water off to the entire home. Typically used on stub out coming out of the wall. Certified for use in potable water systems.
SharkBite™ 23056LF Supply Stop Valve, 1/2 x 1/4 in Nominal, PEX, Quarter-Turn Handle Actuator, 200 psi, Brass Body
BrandSharkBite™
MFG #23056LF
Keller #797436
My Part ##
Last Ordered#
$16.75 / ea
