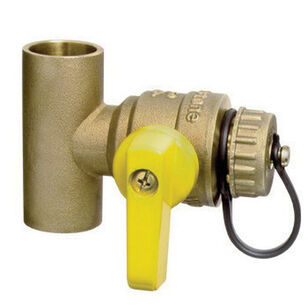

Webstone 5067 Series 50674W T-Drain Valve, 1 in, C x C, 600 lbf/sq-in WOG, 100 deg F, Forged Brass
Webstone 5067 Series 50674W T-Drain Valve, 1 in, C x C, 600 lbf/sq-in WOG, 100 deg F, Forged Brass
Webstone T-Drain Valve, 5067 Series, 1 in Nominal, C x C Connection, 600 lbf/sq-in WOG, 3-13/16 in Opening, Forged Brass Body, PTFE Seat, Brass Stem, PTFE Stem Seal, Hard Chrome-Plated Brass Ball Trim, Brass Packing, Aluminum Handle, 100 deg F, Lead-Free
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$61.45Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWebstone
Body MaterialForged Brass
Connection TypeC x C
Handle MaterialAluminum
IndustryPlumbing
Lead-FreeYes
Nominal Size1
Opening Size3-13/16
Packing MaterialBrass
Pressure Rating600 lbf/sq-" WOG
Seal MaterialPTFE Stem
Seat MaterialPTFE
Series5067 Series
Stem MaterialBrass
Temperature Rating100
Trim MaterialHard Chrome-Plated Brass Ball
Additional Information
ANSI/NSF 61/372|ISO 9001
Features & Benefits
- Full port forged brass fitting with high-flow hose drain Install anywhere a branch hose line is required High-flow alternative for filling closed loop hydronic systems Eliminate assemblies needed for installing drains/draw offs into a line U2 in one alternative replaces a tee fitting and purge drain Blowout-proof stem Adjustable packing gland Brass end cap, enamel-coated aluminum handle, brass handle screw, brass with EPDM strap cap and strap, EPDM washer
Documents
Webstone 5067 Series 50674W T-Drain Valve, 1 in, C x C, 600 lbf/sq-in WOG, 100 deg F, Forged Brass
BrandWebstone
MFG #H-50674W
Keller #799667
