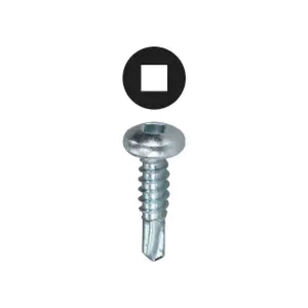

Dottie® TEKDD102 Self-Drilling Screw, #10 Thread, 2 in OAL, Pan Head, Square Drive, Carbon Steel, Zinc-Plated
Dottie® TEKDD102 Self-Drilling Screw, #10 Thread, 2 in OAL, Pan Head, Square Drive, Carbon Steel, Zinc-Plated
Dottie® Self-Drilling Screw, #10 Thread, BSD Thread, 2 in Overall Length, 0.357 to 0.373 in Dia x 0.126 to 0.137 in H Head, Pan Head, Square Drive, #3 Point, Carbon Steel, Zinc-Plated, Additional Information: 16 TPI, 32 to 40 HRC Rockwell Hardness
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$0.55 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandDottie®
Additional Information16 TPI, 32 to 40 HRC Rockwell Hardness
ApplicationMetal to Metal Applications
Drive TypeSquare
FinishZinc-Plated
Head Size0.357 to 0.373 " Dia x 0.126 to 0.137 " H
Head TypePan
IndustryPlumbing
MaterialCarbon Steel
Overall Length2
Point Size#3
Thread Size#10
Thread TypeBSD
Shipping Dimensions (L x W x H)2.18" x 2.92" x 4.31"
Additional Information
ASTM C1513|IFI-113|RoHS Compliant
Features & Benefits
- Taps and fastens in one operation
Marketing Information
Self-drilling screws are manufactured from cold heading steel and feature a two-drill point. The unique tip design allows them to drill, tap and fasten metal to metal objects in one-operation, without the need to pre-drill. This creates the optimal drill performance and thread forming experience. The most common applications are used on metal to metal, but they can also be used in a wide variety of other applications. IFI-113 and ASTM C954 cover the material and performance requirements for steel self-drilling screws.
Dottie® TEKDD102 Self-Drilling Screw, #10 Thread, 2 in OAL, Pan Head, Square Drive, Carbon Steel, Zinc-Plated
BrandDottie®
MFG #TEKDD102
Keller #799888
My Part ##
Last Ordered#
$0.55 / ea
