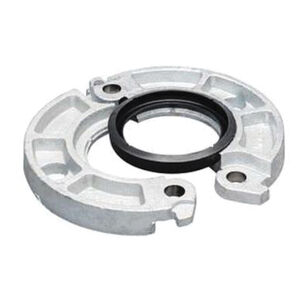

Victaulic® FireLock™ 744 Series L040744GE0 Flange Adapter, 4 in Flanged x 4 in Grooved, Iron, 125 lb, 150 lb
Victaulic® FireLock™ 744 Series L040744GE0 Flange Adapter, 4 in Flanged x 4 in Grooved, Iron, 125 lb, 150 lb
744 Series Flange Adapter, 4 in Flanged x 4 in Grooved, Iron, 125 lb, 150 lb, Hot-Dipped Galvanized
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,085.50 / ea
Out of Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandVictaulic®
Additional InformationEPDM Gasket
ApplicationFor designed to transition from flanged to grooved piping systems
Connection Size 14
Connection Size 24
Connection TypeFlanged|Grooved
Connection Type 1Flanged
Connection Type 2Grooved
Dimensions4.5 " OD x 9.94 " L x 0.94 " W
FinishHot-Dipped Galvanized
Fitting TypeAdapter
Includes(8) 5/8 x 3 in Bolts/Nuts
IndustryFire Protection
MaterialIron
Material ConstructionIron
Pressure Class125 lb, 150 lb
Pressure Rating175
Series744 Series
Additional Information
ASTM A536 Grade 65-45-12|cUL/UL Listed|FM Approved
Documents
Marketing Information
Style 744 FireLock™ flange adapter is designed for directly incorporating flanged components with ANSI class 125 or class 150 bolt hole patterns into a grooved pipe system. Sizes 2 to 8 in (50 to 200 mm) are hinged for easy handling with integral end tabs which facilitate assembly. The design incorporates small teeth inside the key shoulder ID to prevent rotation. Because of the outside flange dimension, FireLock™ flange adapters should not be used on FireLock™ fittings. When wafer or lug-type valves are used adjoining a Victaulic® fitting, check disc dimensions to assure proper clearance. FireLock™ flange adapters should not be used as anchor points for tie rods across non-restrained joints. Mating rubber faced flanges, valves and more require the use of a FireLock™ flange washer. FireLock™ flange adapters with vice-plus gaskets do not require lubrication. The gasket must always be assembled with the color-coded lip on the pipe and the other lip facing the mating flange.
Victaulic® FireLock™ 744 Series L040744GE0 Flange Adapter, 4 in Flanged x 4 in Grooved, Iron, 125 lb, 150 lb
BrandVictaulic®
MFG #L040744GE0
Keller #800438
