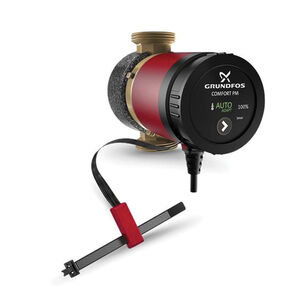

Grundfos 98420224 Circulator Pump, 0.33 cu-m/hr, 6 W, 115-230 V, 0.1 A, 60 Hz, 10 bar Max Pressure, Brass
Grundfos 98420224 Circulator Pump, 0.33 cu-m/hr, 6 W, 115-230 V, 0.1 A, 60 Hz, 10 bar Max Pressure, Brass
Grundfos Circulator Pump, 0.33 cu-m/hr Flow Rate, 5-1/4 ft Maximum Head, 6 W, 115-230 V, 0.1 A, 60 Hz, 10 bar Maximum Pressure, 1-1/4 in Connection, NPSM Connection, Composite Impeller, 1 ph Phase, 2 to 95 deg C, IP44 Enclosure, Brass, 4-1/3 in W, Additional Information: 983.2 kg/cu-m Density
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$470.00Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional Information983.2 kg/cu-m Density
Amperage Rating0.1
Connection Size1-1/4
Connection TypeNPSM
Dimensions4-1/3 " W
Enclosure TypeIP44
Flow Rate0.33
Frequency Rating60
Impeller TypeComposite
MaterialBrass
Maximum Head5-1/4
Maximum Pressure10
Phase1
Power Rating6
Temperature Rating2 to 95
Voltage Rating115-230
Additional Information
ASTM B505/B371|CSA Certified|UL Listed
Features & Benefits
- Unique autoadapt feature saving up to 48% heat energy and 97% motor energy compared with a standard pump in continuous operation Flushing function Automatic legionella eliminating operation (if supported from the system) Automatic weekend and vacation detection Temperature control (can be chosen through the pushbutton) Continuous operation (can be chosen through the pushbutton) Quick and simple electrical installation due to 1.5 m cable includes power plug Dry running detection Easy-to-clean and lime insensitive spheric rotor Wearless operation due to liquid lubricated bearing No leakage risk due to a static seal Easy maintenance and cleaning through the easy to separate pump head fitting almost all competitor pump housings Corrosion-resistant lead-free brass pump housing No additional motor protection necessary due to integrated motor electronics
Documents
Marketing Information
Comfort is a compact and energy-efficient hot water recirculation pump designed to deliver instant hot water to all faucets in private homes. The pump is easily installed and secures silent operation.
