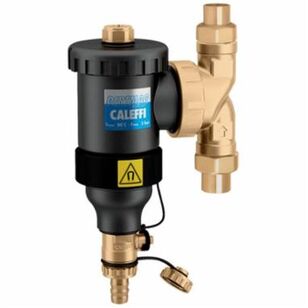

Caleffi DIRTMAG® NA5453 Series NA545395 Dirt Separator With Magnet, 3/4 in, Sweat Union, 30 % Max Percentage of Glycol
Caleffi DIRTMAG® NA5453 Series NA545395 Dirt Separator With Magnet, 3/4 in, Sweat Union, 30 % Max Percentage of Glycol
Caleffi DIRTMAG® Dirt Separator With Magnet, NA5453 Series, 3/4 in Nominal, Sweat Union Connection, 45 psi, 32 to 195 deg F, Glycol Solution, Water Suitable Media, 30 % Maximum Percentage of Glycol, 4 gpm Flow Rate, 8.7 Cv Flow Coefficient (Cv), Up to 5 um Particle Separation Capacity, Nylon, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$260.00 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandCaleffi
Connection TypeSweat Union
Domestic/ImportImport
Flow Coefficient (Cv)8.7
Flow Rate4
MaterialNylon
Maximum Percentage Of Glycol30
Nominal Size3/4
Particle Separation CapacityUp to 5
Pressure Rating45
SeriesNA5453 Series
Suitable MediaGlycol Solution, Water
Temperature Rating32 to 195
Features & Benefits
- The DIRTMAG® removes both ferrous and non-ferrous impurities continuously in a sealed hydronic heating and cooling system A removable magnetic ring and large drain valve make the DIRTMAG® quick and easy to flush collected dirt and ferrous impurities, including magnetite A large low velocity zone dirt collection chamber reduces the frequency of cleaning, which can also be done while the system is operating A powerful removable external magnetic ring attracts ferrous impurities with 2.5X the removal performance of a standard dirt separator DIRTMAG® will separate dirt particles down to 5 um and up to 100% of ferrous impurities, including magnetite, during multiple passes of system fluid This multi-function device, with isolating valves, can also be used as a dosing point to inject chemical additives into the hydronic circuit
Marketing Information
Dirt separator with magnet. Brass-mounting housing. Ferrous impurities separation efficiency - 100%. Drain valve with hose connection. Top dosing point port. Dosing capacity - 12 fl-oz. Manual screw air vent.
