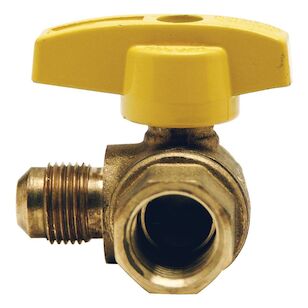

BrassCraft® TBV Series TBVA8-8 Angle Ball Valve, 1/2 x 1/2 in, Flared x FIP, Brass, 5 psi
BrassCraft® TBV Series TBVA8-8 Angle Ball Valve, 1/2 x 1/2 in, Flared x FIP, Brass, 5 psi
BrassCraft® Angle Ball Valve, TBV Series, 1/2 x 1/2 in Nominal, Flared x FIP Connection, 5 psi, Gas Media, 1.89 in Inlet to Outlet Length, 1.70 in Top to Inlet Center, Brass Body, PTFE Seat, Brass Stem, Rubber Seal, Aluminum Handle, 1.89 in L, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$56.67 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBrassCraft®
Body MaterialBrass
Connection TypeFlared x FIP
Dimensions1.89 " L
Domestic/ImportImport
Handle MaterialAluminum
Inlet to Outlet Length1.89
MediaGas
Nominal Size1/2 x 1/2
Pressure Rating5
Seal MaterialRubber
Seat MaterialPTFE
SeriesTBV Series
Stem MaterialBrass
Top to Inlet Center1.70
Additional Information
CSA Certified to ANSI Z21.15/CSA 9.1|ANSI/ASME B16.44 and CGA CR91-002
Features & Benefits
- Forged brass body eliminates pin hole leaks commonly associated with cast products Connects to a 1/2 in OD gas connector and a 1/2 in MIP gas supply pipe Use with natural, manufactured, mixed and liquefied petroleum (LP or propane) gases and LP gas air mixtures Blowout-proof stem assembled from the inside with double O-rings to ensure safe, reliable performance PTFE seats assure a tight seal and easy-on and off operation even after long periods of inactivity Comfort fit grip handle features an exclusive integration of the 'T' and lever handle designs Quarter-turn operation provides easy-on and off flow control 100% leak tested to ensure reliable, leak-free performance
Documents
Marketing Information
BrassCraft® exclusive line of Italian made gas ball valves are specially engineered to provide unsurpassed product performance. From the stem to the body to the exclusive handle design, every detail has been master crafted for ease of operation and installation. Angle valves are ideal for installations in tight spaces. This gas ball valve installs directly to the gas pipe stub out at the appliance to regulate gas flow.
BrassCraft® TBV Series TBVA8-8 Angle Ball Valve, 1/2 x 1/2 in, Flared x FIP, Brass, 5 psi
BrandBrassCraft®
MFG #TBVA8-8
Keller #805090
My Part ##
Last Ordered#
$56.67 / ea
