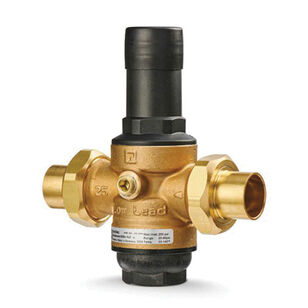

Honeywell Home Braukmann DS06 DialSet® Series DS06-105-DUS-LF Pressure Regulating Valve, 2 in Nominal, FNPT x Threaded
Honeywell Home Braukmann DS06 DialSet® Series DS06-105-DUS-LF Pressure Regulating Valve, 2 in Nominal, FNPT x Threaded
Honeywell Home Braukmann Pressure Regulating Valve, DS06 DialSet® Series, 2 in Nominal, FNPT x Threaded Connection, 25 to 90 psi, 250 psi, 105.14 gpm Flow Rate, Water Media, Bronze Body, 33 to 140 deg F, 5-43/64 in L x 11-13/16 in H, Additional Information: 14.5 psi Differential, 10:1 Reducing Ratio, Balanced Single Seat Construction
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,665.20 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
Brandresideo
Additional Information14.5 psi Differential, 10:1 Reducing Ratio, Balanced Single Seat Construction
ApplicationFor potable water and irrigation applications
Body MaterialBronze
Connection TypeFNPT x Threaded
Dimensions5-43/64 " L x 11-13/16 " H
Flow Rate105.14
IndustryHVAC
MediaWater
Nominal Size2
Pressure Rating25 to 90 psi, 250 psi
SeriesDS06 DialSet Series
Temperature Rating33 to 140
Additional Information
ASSE 1031, 1003-2020|CSA B356|IAPMO Approved|NSF 61/372
Features & Benefits
- Built-in Dial-Set™ - no gauge is needed to install or set static pressure Non-corroding unitized cartridge contains all working parts and is easily replaceable Outlet adjustment range of 25 to 90 psi make it suitable for household, commercial, industrial and turf and irrigation applications Install it just about anywhere The internal and external threading allows for use in thread by thread, single-union or double union configurations 1/4 in NPT tap accessible from both sides to validate output Built-in strainer to simplify maintenance High-quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures
Marketing Information
The DS06 DialSet® pressure regulating valve from resideo is a high-quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Honeywell Home Braukmann DS06 DialSet® Series DS06-105-DUS-LF Pressure Regulating Valve, 2 in Nominal, FNPT x Threaded
Brandresideo
MFG #DS06-105-DUS-LF/U
Keller #805408
My Part ##
Last Ordered#
$1,665.20 / ea
