PPP PT-8 Electronic Trap Priming Assembly, 3/4 in Nominal, FNPT, Steel, Galvanized, 20 to 150 psi
PPP PT-8 Electronic Trap Priming Assembly, 3/4 in Nominal, FNPT, Steel, Galvanized, 20 to 150 psi
PPP Electronic Trap Priming Assembly, Prime-Time Series, Model: PT, 3/4 in Nominal, 16 ga Gauge, Connection Type: FNPT, 20 to 150 psi, Steel, Galvanized, 32 to 125 deg F, 16 in L x 14 in W x 3-3/8 in D, Lead-Free
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,947.09Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandPPP
Connection TypeFNPT
Dimensions16 " L x 14 " W x 3-3/8 " D
FinishGalvanized
Gauge16
MaterialSteel
ModelPT
Nominal Size3/4
Pressure Rating20 to 150
SeriesPrime-Time Series
Temperature Rating32 to 125
Additional Information
ASSE 1044|cULus Listed|IAPMO Certified|UPC Certified
Features & Benefits
- Serves up to 12 Drains Atmospheric Vacuum Breaker Pre-Set 24 Hour Change Manual Over Ride Switch 120V/220V Solenoid Valve 120V/220V 3/Wire Connection 3/4" FNP Connection Calibrated Manifold for Equal Water Distribution 5/8" or 1/2" Outlet Compression Fittings
Marketing Information

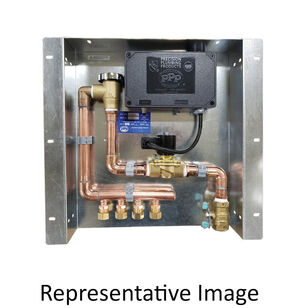

The Electronic Priming Manifold pictured is available in five separate configurations. The model PT-4 offers a four opening manifold capable of priming four separate floor drain traps from a single control unit. Models PT-6 thru PT-12 provide the same features only expanding to a total of twelve floor drains. All manifolds are available in either 1/2" or 5/8" compression fittings.
PPP PT-8 Electronic Trap Priming Assembly, 3/4 in Nominal, FNPT, Steel, Galvanized, 20 to 150 psi
BrandPPP
MFG #PT-8
Keller #80615
My Part ##
Last Ordered#
$1,947.09Â /Â ea
