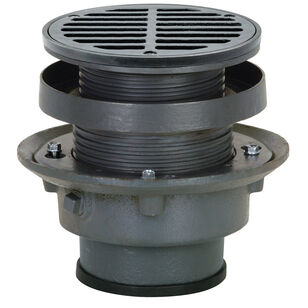

Sioux Chief FinishLine™ 833-63DIR Adjustable Above-Grade Flashing Drain, 3 in Nominal, Push-Joint
Sioux Chief FinishLine™ 833-63DIR Adjustable Above-Grade Flashing Drain, 3 in Nominal, Push-Joint
Sioux Chief Adjustable Above-Grade Flashing Drain, 833 Series, 3 in Nominal, Push-Joint Connection, Iron Drain, 6-1/2 in Dia Grid, Iron Grid, 6-1/2 in Dia x 5 to 7 in H, Domestic/Import: Import, Additional Information: Round Shape, 13.25 sq-in Strainer Free Area
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$800.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Additional InformationRound Shape, 13.25 sq-" Strainer Free Area
Connection TypePush-Joint
Dimensions6-1/2 " Dia x 5 to 7 " H
Domestic/ImportImport
Drain MaterialIron
Grid MaterialIron
Grid Size6-1/2 " Dia
IndustryPlumbing
Nominal Size3
Series833 Series
Additional Information
ASME A112.6.3
Features & Benefits
- Cast iron base adapter with ductile iron clamping collar, coring sleeve, head adapter, poly coring plug and neoprene push-joint gasket Nickel bronze and stainless steel strainers for pedestrian traffic Adjustable AFTER the pour Ductile iron strainers for heavy-duty applications Patent #7,735,512
Documents
Marketing Information
Sioux Chief 833 series FinishLine adjustable above-grade flashing drain shall be used where necessary in drainage systems. Flashing drain shall allow adjustment of 1-1/4" before the concrete pour, and 1-1/4" after the concrete pour. Flashing drain shall have an invertible flashing collar with openings to allow secondary drainage and a cast iron base adapter. Strainer shall meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2" FIP for optional connection. Designed in accordance with ASME A112.6.3.
Sioux Chief FinishLine™ 833-63DIR Adjustable Above-Grade Flashing Drain, 3 in Nominal, Push-Joint
BrandSioux Chief
MFG #833-63DIR
Keller #806743
