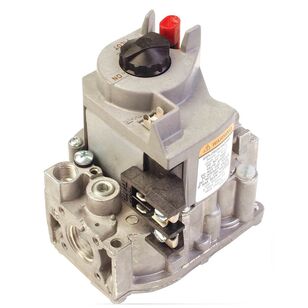

resideo VR8200 Series VR8200H1236/U Slow Opening Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, Natural Gas
resideo VR8200 Series VR8200H1236/U Slow Opening Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, Natural Gas
resideo Slow Opening Gas Valve, VR8200 Series, 1/2 in Inlet, 1/2 in Outlet, NPT End, 20000 to 200000 Btu/hr Nominal Capacity, Natural Gas, Standing Pilot Ignition, 0.5 psi, 0 to 175 deg F, 24 VAC, 60 Hz, 1/4 in Quick-Connect Male Terminals Electrical Connection, 3-1/4 in Overall Length, 4-1/8 in Overall Width, 5-3/16 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$387.89Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
Brandresideo
Electrical Connection1/4 " Quick-Connect Male Terminals
End TypeNPT
Frequency Rating60
Gas TypeNatural Gas
Ignition TypeStanding Pilot
IndustryHVAC
Inlet Size1/2
Nominal Capacity20000 to 200000
Outlet Size1/2
Overall Height5-3/16
Overall Length3-1/4
Overall Width4-1/8
Pressure Rating0.5
SeriesVR8200 Series
Temperature Rating0 to 175
Voltage Rating24
Additional Information
UL MCCZ2.MH5323|CSA 112395
Features & Benefits
- Control includes safety shut-off, manual valve, two automatic operators, pressure regulator and pilot adjustment Compact size Provides two automatic valves Solenoid operated first automatic valve opens on thermostat call for heat and closes when call for heat ends Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted Meets codes requiring dual safety shut-off Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves All adjustments, wiring and pilot outlet are accessible from top of control Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure Compatible with ECO connector Lite-rite (off-pilot-on) lighting sequence
Documents
Marketing Information
Combination gas control for use in 24 VAC gas fired, standing pilot appliances with capacities from 30 to 300 cfh.
resideo VR8200 Series VR8200H1236/U Slow Opening Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, Natural Gas
Brandresideo
MFG #VR8200H1236/U
Keller #808355
My Part ##
Last Ordered#
$387.89Â /Â ea
