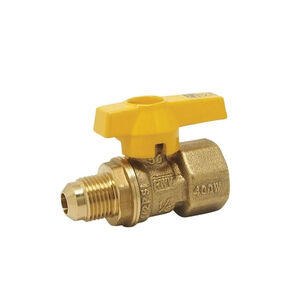

RWV® 5210 Series 5210.5 Ball Valve, 1/2 x 3/8 in, FNPT x Flared, Brass, 175 psi
RWV® 5210 Series 5210.5 Ball Valve, 1/2 x 3/8 in, FNPT x Flared, Brass, 175 psi
RWV® Ball Valve, 5210 Series, 1/2 x 3/8 in Nominal, FNPT x Flared Connection, 2-Piece, 175 psi, Gas Media, 0.28 x 0.39 in Orifice, 2.27 in Inlet to Outlet Length, 1.27 in Top to Inlet Center, Lever Handle Operator, Material Standard: ANSI Z21.15, ASME B1.20.1, ASTM B124 C37700, ASTM B283 C37700, ASTM B85 A03840, ASTM A36, Brass Body, PTFE Seat, Brass Stem, PTFE Trim, Aluminum Handle, Brass Ball, FKM/HNBR/PTFE Softgoods, Contains Lead, 2.27 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$21.91 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
ApplicationFor HVAC systems, oil, compressed air or gas distribution
Ball MaterialBrass
Body MaterialBrass
Configuration2-Piece
Connection TypeFNPT x Flared
Dimensions2.27 " L
Handle MaterialAluminum
IndustryPlumbing
Inlet to Outlet Length2.27
Material StandardANSI Z21.15, ASME B1.20.1, ASTM B124 C37700, ASTM B283 C37700, ASTM B85 A03840, ASTM A36
MediaGas
Nominal Size1/2 x 3/8
Operator TypeLever Handle
Orifice Size0.28 x 0.39
Pressure Rating175
Seat MaterialPTFE
Series5210 Series
Softgoods MaterialFKM/HNBR/PTFE
Stem MaterialBrass
Top to Inlet Center1.27
Trim MaterialPTFE
Additional Information
cCSAus Certified
Features & Benefits
- Chrome-plated ball
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
RWV® 5210 Series 5210.5 Ball Valve, 1/2 x 3/8 in, FNPT x Flared, Brass, 175 psi
BrandRWV®
MFG #5210 1/2
Keller #810290
My Part ##
Last Ordered#
$21.91 / ea
