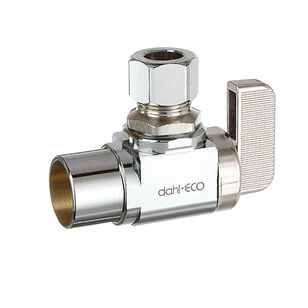

dahl mini-ball™ 611-13-31 Supply Stop Valve, 1/2 x 3/8 in Nominal, Female Solder X Compression, Handle Actuator
dahl mini-ball™ 611-13-31 Supply Stop Valve, 1/2 x 3/8 in Nominal, Female Solder X Compression, Handle Actuator
dahl mini-ball™ Supply Stop Valve, 1/2 x 3/8 in Nominal, Female Solder X Compression Connection, 250 psi, Brass/PTFE Trim, EPDM/FKM/PTFE Softgoods, Brass Body, Zinc Handle, Handle Actuator, 1.8 Cv Flow Coefficient (Cv), Finish: Chrome-Plated, 250 deg F, 2.4 in L x 2.3 in W x 1.6 in H, Domestic/Import: Domestic, Additional Information: 2.4 in L Inlet to Outlet, 1.2 in Top to inlet Center, Angled Configuration, Lead-Free, PTFE Seal
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$21.13 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
Branddahl
Actuator TypeHandle
Additional Information2.4 " L Inlet to Outlet, 1.2 " Top to inlet Center, Angled Configuration, Lead-Free, PTFE Seal
Body MaterialBrass
Connection TypeFemale Solder X Compression
Dimensions2.4 " L x 2.3 " W x 1.6 " H
Domestic/ImportDomestic
FinishChrome-Plated
Flow Coefficient (Cv)1.8
Handle MaterialZinc
Nominal Size1/2 x 3/8
Pressure Rating250
Softgoods MaterialEPDM/FKM/PTFE
Temperature Rating250
Trim MaterialBrass/PTFE
Additional Information
cCSAus Certified|UPC Certified|NSF/ANSI/CAN 372, 61:Q≤0.5
Features & Benefits
- Every valve is tested before leaving our factory They may build them with something else, but they fix them with these
Documents
Marketing Information
dahl valves and fittings are designed and manufactured in Canada and backed by our lifetime transferable warranty. Made with 100% North American materials, specifically with premium quality US lead-free brass, every dahl valve is tested for quality before leaving the plant. More than a valve, dahl offers a lifetime of reliability.
