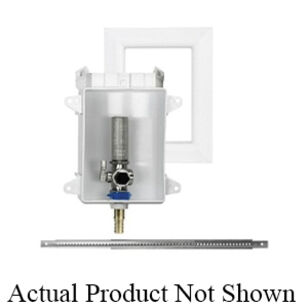

Sioux Chief OxBox™ 696 Series 696-G1010XR Ice Maker Outlet Box With Arrester, 1/2 x 1/4 in, PEX x Compression, ABS Box
Sioux Chief OxBox™ 696 Series 696-G1010XR Ice Maker Outlet Box With Arrester, 1/2 x 1/4 in, PEX x Compression, ABS Box
Sioux Chief OxBox™ Ice Maker Outlet Box With Arrester, 696 Series, 1/2 x 1/4 in Connection, PEX x Compression Connection, Quarter-Turn Ball Valve, 4 in Box Width, 3-1/2 in Box Depth, 5-1/2 in Box Height, ABS Box, 5-7/8 in Faceplate Width, 7-1/4 in Faceplate Height, ABS Faceplate, Brass Valve
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$49.75 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Box Depth3-1/2
Box Height5-1/2
Box MaterialABS
Box Width4
Connection Size1/2 x 1/4
Connection TypePEX x Compression
Faceplate Height7-1/4
Faceplate MaterialABS
Faceplate Width5-7/8
IndustryPlumbing
Series696 Series
Valve MaterialBrass
Valve TypeQuarter-Turn Ball
Additional Information
ASME A112.18.1|ASSE 1010|ASTM F1807|cUPC Certified|IAPMO Listed|NSF 372
Features & Benefits
- Durable ABS box mounts securely to stud or between studs Included debris covers protect box/valve from dust, mud and paint
Marketing Information
Sioux Chief 696 Series OxBox™ outlet box shall be used where necessary in plumbing systems. Unit shall allow for mounting with supply lines from top or bottom, on-stud or between-studs. Unit shall include plated, quarter-turn valve with 1/4 in compression outlet. Valve outlets shall be provided with tamper-resistant test caps. Metal support bracket can be installed into tracks of box. Designed in accordance with IAPMO PS 54-2021a.
Sioux Chief OxBox™ 696 Series 696-G1010XR Ice Maker Outlet Box With Arrester, 1/2 x 1/4 in, PEX x Compression, ABS Box
BrandSioux Chief
MFG #696-G1010XR
Keller #811562
My Part ##
Last Ordered#
$49.75 / ea
