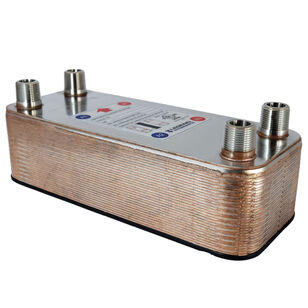

Legend Valve HX Series HX-300 807-073 Heat Exchanger, 150 MBtu/hr BTU, 12.4 gpm, Stainless Steel
Legend Valve HX Series HX-300 807-073 Heat Exchanger, 150 MBtu/hr BTU, 12.4 gpm, Stainless Steel
Legend Valve Heat Exchanger, Series: HX Series, Model: HX-300, 150 MBtu/hr, 30 Plates, 1 in Connection, NPT Connection Type, 435 psi, 12.4 gpm, Stainless Steel, 302 deg F, 12 in H x 4-7/8 in W x 3-1/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,372.04Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLegend Valve
BTU Rating150
Connection Size1
Connection TypeNPT
Dimensions12 " H x 4-7/8 " W x 3-1/4 " D
Flow Rate12.4
MaterialStainless Steel
ModelHX-300
Number of Plates30
Pressure Rating435
SeriesHX Series
Temperature Rating302
Shipping Dimensions (L x W x H)5.9" x 5.5" x 12.8"
Additional Information
UL Listed
Features & Benefits
- High thermal efficiency High temperature (302 deg F) and pressure (435 psi) resistance High corrosion resistance No gasket seals Compact size and low weight Easy installation and less maintenance Very durable HX Series heat exchangers consist of acid-resistant stainless steel plates with a herringbone ridge pattern
Documents
Marketing Information
The plates are arranged so that this pattern is in the opposite direction on each adjacent plate and at every point where the ridges intersect, a copper vacuum brazed joint exists forming a separate flow path for the two media exchanging heat energy. The counter current flow paths of the media and the vigorous turbulence caused by the ridges ensure maximum heat transfer.
Legend Valve HX Series HX-300 807-073 Heat Exchanger, 150 MBtu/hr BTU, 12.4 gpm, Stainless Steel
BrandLegend Valve
MFG #807-073
Keller #811865
