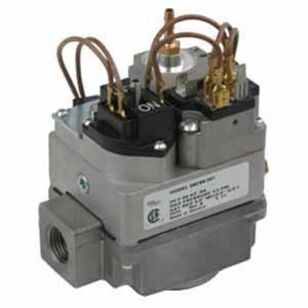

WHITE-RODGERS™ 36C Series 36C94-303 Control Valve, 1/2 x 3/4 in, 1/2 psi
WHITE-RODGERS™ 36C Series 36C94-303 Control Valve, 1/2 x 3/4 in, 1/2 psi
WHITE-RODGERS™ Control Valve, 36C Series, 1/2 x 3/4 in Nominal, 1/2 psi Pressure, 1 Stage, Intermittent Ignition, 0.6 A, 24 VAC at 60 Hz, 230000 Btu/hr for Natural Gas 1000 Btu/cu-ft, 372600 Btu/hr for LP Gas 2500 Btu/cu-ft at 1 in Pressure Drop Nominal, LP Gas, Natural Gas Fuel, NPT Pressure Tap, Compression Pilot Hose Connection, -40 to 175 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$471.30 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandWHITE-RODGERS™
Amperage Rating0.6
Fuel TypeLP Gas, Natural Gas
Hose Connection TypeNPT Pressure Tap, Compression Pilot
Ignition TypeIntermittent
Nominal Capacity230000 Btu/hr for Natural Gas 1000 Btu/cu-', 372600 Btu/hr for LP Gas 2500 Btu/cu-' at 1 " Pressure Drop
Nominal Size1/2 x 3/4
Number of Stages1
Pressure Rating1/2
Series36C Series
Temperature Rating-40 to 175
Voltage Rating24 VAC at 60 Hz
Features & Benefits
- 5 s delay slow opening 3/16 terminal adapter on terminal #4 Straight through flow direction Four balance of terminals are 1/4 in spade Pressure switch on cap Leak limiting hose barb (fitting) on regulator tower Replaces wholesale 36E93-304 Carrier 36E93-303 (EF32CB198A) with hose barb and 36E93-301 (EF32CW183A) LP conversion kit standard
WHITE-RODGERS™ 36C Series 36C94-303 Control Valve, 1/2 x 3/4 in, 1/2 psi
BrandWHITE-RODGERS™
MFG #36C94-303
Keller #812187
