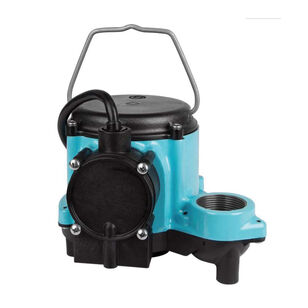

Little GIANT® 6 Series 6-CIA 506158 Sump Pump, 115 V, 9 A Full Load, 1/3 hp, 18 ft Max Feet of Head
Little GIANT® 6 Series 6-CIA 506158 Sump Pump, 115 V, 9 A Full Load, 1/3 hp, 18 ft Max Feet of Head
Little GIANT® Sump Pump, Model: 6-CIA, 115 V, 9 A Full Load, 50/60 Hz, 1/3 hp, 46 gpm at 5 ft, 29 gpm at 10 ft, 12.5 gpm at 15 ft Flow Rate, 1-1/2 in Discharge, 10 ft L Cord, Maximum Feet of Head: 18 ft, 7.8 psi, 120 deg F, Nylon Impeller, Epoxy-Coated Aluminum, 9-1/2 in L x 8-1/2 in W x 6 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$419.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLittle GIANT®
Amperage Rating9 A Full Load
ApplicationFor basement sumps, dewatering, water transfer
Cord Size10 ' L
Dimensions9-1/2 " L x 8-1/2 " W x 6 " H
Discharge Size1-1/2
Flow Rate46 gpm at 5 ', 29 gpm at 10 ', 12.5 gpm at 15 '
Frequency Rating50/60
HP Rating1/3
Impeller MaterialNylon
Includes3/4 in GHT Garden Hose Adapter
IndustryPlumbing
MaterialEpoxy-Coated Aluminum
Maximum Feet of Head18
Model6-CIA
Pressure Rating7.8
Series6 Series
Temperature Rating120
Voltage Rating115
Additional Information
C/US CSA Certified|CSA Certified|UL Listed
Features & Benefits
- Cast iron pump housing with protective epoxy coating for corrosion-resistance Oil-filled motor housing for lifetime lubrication and rapid heat dissipation 3/10 hp shaded pole motor Stainless steel screws, bolts and handle to protect against corrosion Mechanical seal (stainless steel spring, nitrile parts, carbon and ceramic faces) to assure maximum protection against pump failure Bearings - upper and lower sintered sleeve bearings for extended motor life Thermal overload protection Automatic operation with pressure switch activates pump when water level is between 7 and 10, pump shuts-off when water level falls to between 1 and 4 (pressure switch is non-adjustable) Automatic operation with piggyback mechanical float switch activates pump when water level is between 9 and 10-1/2, pump shuts-off when water level falls to between 2 and 3 (pumping range is adjustable) Integral diaphragm switch Polypropylene volute, cold rolled steel motor shaft, nitrile with carbon shaft seal, stainless steel fasteners
Little GIANT® 6 Series 6-CIA 506158 Sump Pump, 115 V, 9 A Full Load, 1/3 hp, 18 ft Max Feet of Head
BrandLittle GIANT®
MFG #506158
Keller #81335
My Part ##
Last Ordered#
$419.00 / ea
