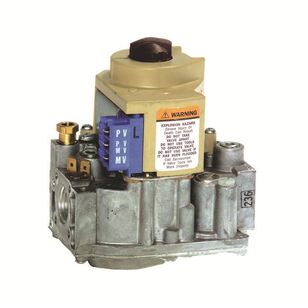

resideo VR Series VR8204M1091/U Opening Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 20000 to 200000 Btu/hr Nominal
resideo VR Series VR8204M1091/U Opening Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 20000 to 200000 Btu/hr Nominal
resideo Opening Gas Valve, VR Series, 1/2 in Inlet, 1/2 in Outlet, NPT End, 20000 to 200000 Btu/hr Nominal Capacity, Liquid Propane, Natural Gas, Intermittent Pilot Ignition, 0.5 psi, -40 to 175 deg F, 24 VAC, 60 Hz, 1/4 in Quick-Connect Male Terminal Electrical Connection, 2-11/16 in Overall Length, 4-1/8 in Overall Width, 4-15/16 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$517.61Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
Brandresideo
Electrical Connection1/4 " Quick-Connect Male Terminal
End TypeNPT
Frequency Rating60
Gas TypeLiquid Propane, Natural Gas
Ignition TypeIntermittent Pilot
Inlet Size1/2
Nominal Capacity20000 to 200000
Outlet Size1/2
Overall Height4-15/16
Overall Length2-11/16
Overall Width4-1/8
Pressure Rating0.5
SeriesVR Series
Temperature Rating-40 to 175
Voltage Rating24
Additional Information
CSA 112395|UL File No. MCCZ2.MH5323
Features & Benefits
- Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment Compact size Provides two automatic valves Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends Diaphragm operated second automatic valve opens under control of the regulator, closes if gas or power supply is interrupted Meets codes requiring dual safety shut-off Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves All adjustments, wiring connections and pilot outlet are accessible from top of control Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure Compatible with ECO connector On-off lighting sequence
Documents
Marketing Information
Combination gas control for use in 24 VAC gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.
resideo VR Series VR8204M1091/U Opening Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 20000 to 200000 Btu/hr Nominal
Brandresideo
MFG #VR8204M1091/U
Keller #813831
