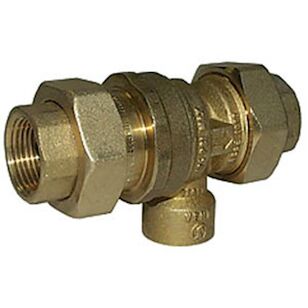

Legend Valve 115-113 Dual Check Backflow Preventer With Atmospheric Vent, 1/2 in, FNPT
Legend Valve 115-113 Dual Check Backflow Preventer With Atmospheric Vent, 1/2 in, FNPT
Legend Valve Dual Check Backflow Preventer With Atmospheric Vent, 1/2 in Nominal, FNPT Connection, 175 psi at 210 deg F Pressure, 3 gpm Flow Rate, Material Standard: ASTM B-124, ASTM B-124M UNS C37700, Forged Brass Body, 250 deg F, Dimensions: 4-1/8 in L x 2.4 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$105.01Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Body MaterialForged Brass
Connection TypeFNPT
Dimensions4-1/8 " L x 2.4 " H
Flow Rate3
IndustryPlumbing
Material StandardASTM B-124, ASTM B-124M UNS C37700
Nominal Size1/2
Pressure Rating175 psi at 210 deg F
Temperature Rating250
Additional Information
ANSI/ASME B1.20.1|ASSE 1012|CSA B64.3|ISO 9002
Features & Benefits
- Designed for continuous pressure hot or cold water lines such as boiler feed or process equipment lines attached to the potable water supply Inlet screen reduces the chance of check fouling Intermittent emergency backflow protection up to 250 deg F ASTM B124/124M UNS C3770 (2) forged brass female adapter, union nut and check piston Commercial-grade EPDM piston seal, seal membrane and two gasket Commercial-grade polyethylene plastic vent diffuser AISI 304 stainless steel two check piston spring and debris screen ASTM B159 UNS C51000 phosphor bronze wire screen retainer Saturated steam not suitable for steam service
Legend Valve 115-113 Dual Check Backflow Preventer With Atmospheric Vent, 1/2 in, FNPT
BrandLegend Valve
MFG #115-113
Keller #814549
My Part ##
Last Ordered#
$105.01Â /Â ea
