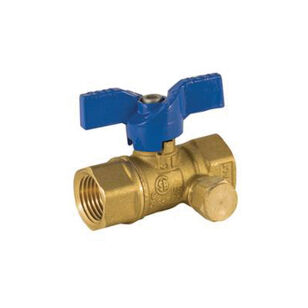

Jomar Valve® T-203 Series 102-304 Ball Valve, 3/4 in, FIP, Brass, 600 psi
Jomar Valve® T-203 Series 102-304 Ball Valve, 3/4 in, FIP, Brass, 600 psi
Jomar Valve® Ball Valve, T-203 Series, 3/4 in Nominal, FIP Connection, 2-Piece, 600 psi, Gas, Oil, Water Media, 0.59 in Orifice, 2.63 in Inlet to Outlet Length, 1.69 in Top to Inlet Center, Reversible Handle Operator, Material Standard: ANSI B1.20.1, Brass Body, PTFE Seat, Brass Stem, FKM Seal, Brass/FKM/PTFE Trim, Aluminum Handle, Brass Ball, Buna-N/NBR/PTFE Softgoods, 2.63 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$36.90 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandJomar Valve®
ApplicationFor outside use in extremely cold climates
Ball MaterialBrass
Body MaterialBrass
Configuration2-Piece
Connection TypeFIP
Dimensions2.63 " L
Domestic/ImportDomestic
Handle MaterialAluminum
Inlet to Outlet Length2.63
Material StandardANSI B1.20.1
MediaGas, Oil, Water
Nominal Size3/4
Operator TypeReversible Handle
Orifice Size0.59
Pressure Rating600
Seal MaterialFKM
Seat MaterialPTFE
SeriesT-203 Series
Softgoods MaterialBuna-N/NBR/PTFE
Stem MaterialBrass
Top to Inlet Center1.69
Trim MaterialBrass/FKM/PTFE
Additional Information
BAA Compliant|CSA 9.4:21|MSS-SP-110|UL Listed
Features & Benefits
- Removable plug enables port for pressure gauge Valve can be locked in the closed position by reversing the handle Two FKM O-ring 100% factory leak tested 100% made in Italy Eliminates need for test tee and labor to install
Documents
Jomar Valve® T-203 Series 102-304 Ball Valve, 3/4 in, FIP, Brass, 600 psi
BrandJomar Valve®
MFG #102-304
Keller #815843
