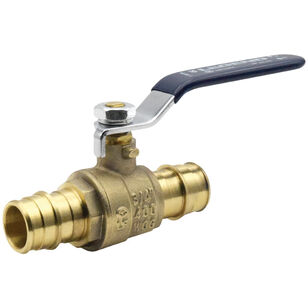

Legend Valve T-1960NL Series 101-543NL Ball Valve, 1/2 in, PEX, Brass, 400 psi
MFG #101-543NL
Item #815980
Mfr. Part #101-543NL
UPC #662545114521
more info
Legend Valve Ball Valve, T-1960NL Series, 1/2 in Nominal, PEX Connection, 400 psi, Water Media, 2.58 in Inlet to Outlet Length, 1.69 in Top to Inlet Center, 0.39 in Opening, Handle Operator, Material Standard: ASTM F1960, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, PTFE Packing, Steel Handle, 304 Stainless Steel Ball, NBR/PTFE Softgoods, Lead-Free, 250 deg F, 2.58 in L, Domestic/Import: Domestic
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$17.04Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandLegend Valve
Ball Material304 Stainless Steel
Body MaterialBrass
Connection TypePEX
Dimensions2.58 " L
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.58
Lead-FreeYes
Material StandardASTM F1960
MediaWater
Nominal Size1/2
Opening Size0.39
Operator TypeHandle
Packing MaterialPTFE
Pressure Rating400
Seat MaterialPTFE
SeriesT-1960NL Series
Softgoods MaterialNBR/PTFE
Stem MaterialBrass
Temperature Rating250
Top to Inlet Center1.69
Trim MaterialBrass/PTFE
Shipping Dimensions (L x W x H)12.3" x 13.2" x 7.1"
Additional Information
ISO 9002|IAPMO Approved|NSF/ANSI 14, 61, 372|UPC Certified
Features & Benefits
Dezincification-resistant (DZR) forged brass construction resists corrosion from exposure to a wide variety of water conditions
Bottom loaded blowout-proof stem features a dual-seal PTFE packing and EPDM rubber O-ring design, assuring positive sealing under a multitude of conditions
Self-cleaning chrome-plated ball resists mineral build-up and scaling
Barbed end connections are designed for use with PEX (ASTM F876 and 877) and PERT (ASTM F2769)
Designed for use with cold-expansion rings that are manufactured in compliance with ASTM F1960
