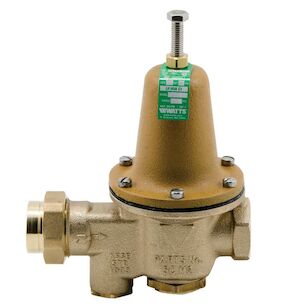

1 1/2 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female Low Pressure Range 10-35 psi
1 1/2 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female Low Pressure Range 10-35 psi
1 1/2 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female Low Pressure Range 10-35 psi
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,575.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi10 to 35
Buy American Act CompliantYes
Corrosion Resistant CoatingYes
Depth7.5"
Disc MaterialEPDM
Height9.38"
IndustryPlumbing
Inlet Connection Size1-1/2"
Inlet Connection TypeFemale Threaded
Inlet Thread TypeNPT
MaterialLead Free Copper Silicon Alloy
Maximum Temperature Deg F160
Maximum Working Pressure Psi300
Minimum Temperature Deg F33
Outlet Connection Size1-1/2"
Outlet Connection Thread TypeNPT
Outlet Connection TypeFemale Threaded
Prop 65 WarningYes
SeriesLFU5B-Z3
Standard Reduced Pressure Setting Psi50
StrainerYes
Strainer MaterialStainless Steel
Thermal Expansion BypassYes
Trim MaterialStainless Steel
Valve StyleStandard
Weight13.8 lbs.
Width7.5"
Shipping Dimensions (L x W x H)7.5" x 7.5" x 9.38"
Features & Benefits
- Sealed spring cage with stainless steel cage screws
- Integral stainless steel strainer removable for cleaning
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
Documents
Marketing Information
This 1 1/2 inch lead free high performance water pressure reducing valve with a lead free cast copper silicon alloy body is equipped for low pressure ranges. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The connection is NPT female union x NPT female. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The low pressure range is 10 to 35 psi (69 to 241 kPa) with the standard setting at 30 psi (207 kPa).
1 1/2 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female Low Pressure Range 10-35 psi
BrandWATTS®
MFG #0009200
Keller #820321
My Part ##
Last Ordered#
$6,575.00Â /Â ea
