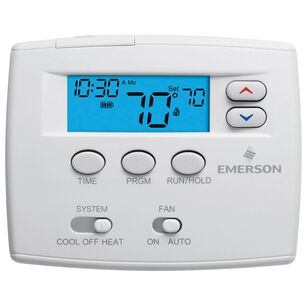

WHITE-RODGERS™ 1F80-0261 Thermostat, 0 to 30 VAC, 0.05 to 1.5 A, 5-1-1 day Program Programmability, 1 Heat/1 Cool
WHITE-RODGERS™ 1F80-0261 Thermostat, 0 to 30 VAC, 0.05 to 1.5 A, 5-1-1 day Program Programmability, 1 Heat/1 Cool
WHITE-RODGERS™ Thermostat, 0 to 30 VAC, 0.05 to 1.5 A, 50/60 Hz, 5-1-1 day Program Programmability, Manual, Battery, Hardwired, 1 Heat/1 Cool Stages, Heat-Off-Cool (System), Auto-On (Fan) Switch Position, 2 sq-in Blue Display, 0.6 to 1.7 deg F Differential Temperature, 45 to 90 deg F Temperature Settings, 32 to 105 deg F, 90% Non-Condensing Humidity Rating, +/-1 deg F Accuracy, Horizontal Mounting, Terminal Designation: R, C, W, Y, O/B, G, Alkaline Battery, White, 3.8 in H x 4.8 in W x 1.5 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$162.59 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWHITE-RODGERS™
Accuracy+/-1
Amperage Rating0.05 to 1.5
Battery TypeAlkaline
ChangeoverManual
ColorWhite
Differential Temperature0.6 to 1.7
Dimensions3.8 " H x 4.8 " W x 1.5 " D
Display Type2 sq-" Blue
Frequency Rating50/60
Humidity Rating90% Non-Condensing
IndustryHVAC
Mounting TypeHorizontal
Power SourceBattery, Hardwired
Programmability5-1-1 day Program
Stages1 Heat/1 Cool
Switch PositionHEAT-OFF-COOL (System), AUTO-ON (Fan)
Temperature Rating32 to 105
Temperature Settings45 to 90
Terminal DesignationR, C, W, Y, O/B, G
Voltage Rating0 to 30
Additional Information
NEC Class II
Features & Benefits
- LOGO climate control Easy set models feature simple home-sleep-away preset buttons Exclusive cool savings feature saves energy during peak A/C demand periods Long battery life, exclusive battery power monitor Four time and four temperature settings per program (heat and cool) Energy savings upto 33% Patented pre-programmed schedule simplifies time and temperature programming Easy to read LCD with improved contrast Lighted display for easier low light viewing Permanent program retention during power loss Setpoint hold, simple setup menu to activate optional features Temporary temperature override 2 hr minimum or until next program period Soft touch keypad, easy access battery compartment Selectable energy management recovery Fast (FA) or slow (SL) heating cycle anticipation Easy to wire push-connect color-coded terminals Compressor lockout protection, electric heat option Display temperature recalibration (+/- 4 deg F) Milli-volt compatible
WHITE-RODGERS™ 1F80-0261 Thermostat, 0 to 30 VAC, 0.05 to 1.5 A, 5-1-1 day Program Programmability, 1 Heat/1 Cool
BrandWHITE-RODGERS™
MFG #1F80-0261
Keller #822213
