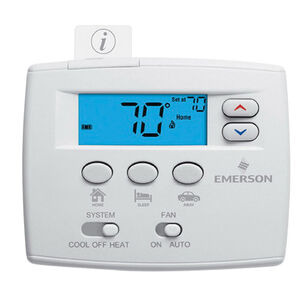

WHITE-RODGERS™ 1F86EZ-0251 Easy Set Thermostat, 0 to 30 VAC, 0.05 to 1.5 A, (2) AA Alkaline Battery, 1 Heat/1 Cool
WHITE-RODGERS™ 1F86EZ-0251 Easy Set Thermostat, 0 to 30 VAC, 0.05 to 1.5 A, (2) AA Alkaline Battery, 1 Heat/1 Cool
WHITE-RODGERS™ Easy Set Thermostat, 0 to 30 VAC, 0.05 to 1.5 A, 50/60 Hz Frequency, Changeover: Manual, 1 Heat/1 Cool Stages, Switch Position: HEAT-OFF-COOL (System), AUTO-ON (Fan), 2 sq-in Blue Display, 0.6 to 1.7 deg F Differential, 45 to 90 deg F Settings, 32 to 105 deg F Ambient, 90% Non-Condensing Humidity, (2) AA Alkaline Battery, +/-1 deg C Accuracy, Battery, Hardwired Power Source, Horizontal Mounting, Dimensions: 3.8 in H x 4.8 in W x 1-1/2 in D, White
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$157.06 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWHITE-RODGERS™
Accuracy+/-1
Amperage Rating0.05 to 1.5
ApplicationFor 1-stage (1H/1C) and gas, oil, electric systems
Battery Type(2) AA Alkaline
ChangeoverManual
ColorWhite
Differential Temperature0.6 to 1.7
Dimensions3.8 " H x 4.8 " W x 1-1/2 " D
Display Type2 sq-" Blue
Frequency Rating50/60
Humidity Rating90% Non-Condensing
Mounting TypeHorizontal
Power SourceBattery, Hardwired
Stages1 Heat/1 Cool
Switch PositionHEAT-OFF-COOL (System), AUTO-ON (Fan)
Temperature Rating32 to 105 deg F Ambient
Temperature Settings45 to 90
Voltage Rating0 to 30
Warranty5 Year Limited
Additional Information
NEC Class II
Features & Benefits
- Easy set models feature simple home-sleep-away preset buttons Easy-to-change temperature presets Exclusive cool savings feature saves energy during peak A/C demand periods Long battery life, battery power monitor, exclusive sleep timer Easy-to-read LCD with improved contrast, lighted display for easier low-light viewing Permanent pre-set retention during power loss, permanent hold Simple setup menu to activating optional features Temporary sleep timer, soft-touch keypad Display temperature recalibration (+/- 4 deg F), easy access battery compartment Fast (FA) or slow (SL) heating cycle anticipation Easy to wire push-connect color-coded terminals Compressor lockout protection, electric heat option, millivolt compatible Ignition module reset
WHITE-RODGERS™ 1F86EZ-0251 Easy Set Thermostat, 0 to 30 VAC, 0.05 to 1.5 A, (2) AA Alkaline Battery, 1 Heat/1 Cool
BrandWHITE-RODGERS™
MFG #1F86EZ-0251
Keller #822247
My Part ##
Last Ordered#
$157.06 / ea
