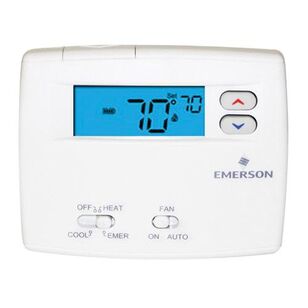

WHITE-RODGERS™ 1F89-211-B9442 Thermostat, 0 to 30 VAC, 0.05 to 1.5 A, (2) AA Alkaline Battery, 2 Heat/1 Cool
WHITE-RODGERS™ 1F89-211-B9442 Thermostat, 0 to 30 VAC, 0.05 to 1.5 A, (2) AA Alkaline Battery, 2 Heat/1 Cool
WHITE-RODGERS™ Thermostat, 0 to 30 VAC, 0.05 to 1.5 A, 50/60 Hz Frequency, Changeover: Manual, 2 Heat/1 Cool Stages, Switch Position: HEAT-OFF-COOL-EM.AUTO (System), AUTO-ON (Fan), 2 sq-in Blue Display, 0.6 to 1.7 deg F Differential, 45 to 90 deg F Settings, 32 to 105 deg F Ambient, 90% Non-Condensing Humidity, (2) AA Alkaline Battery, +/-1 deg C Accuracy, Battery, Hardwired Power Source, Horizontal Mounting, Dimensions: 3.8 in H x 4.8 in W x 1-1/2 in D, White
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$148.13 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWHITE-RODGERS™
Accuracy+/-1
Amperage Rating0.05 to 1.5
Battery Type(2) AA Alkaline
ChangeoverManual
ColorWhite
Differential Temperature0.6 to 1.7
Dimensions3.8 " H x 4.8 " W x 1-1/2 " D
Display Type2 sq-" Blue
Frequency Rating50/60
Humidity Rating90% Non-Condensing
Mounting TypeHorizontal
Power SourceBattery, Hardwired
Stages2 Heat/1 Cool
Switch PositionHEAT-OFF-COOL-EM.AUTO (System), AUTO-ON (Fan)
Temperature Rating32 to 105 deg F Ambient
Temperature Settings45 to 90
Voltage Rating0 to 30
Additional Information
NEC Class II
Features & Benefits
- LOGO ARCTIC AIR Exclusive - easy push-connect color-coded terminals Exclusive cool savings feature saves energy during peak A/C demand periods Long battery life, exclusive battery power monitor Energy savings upto 33% Patented pre-programmed schedule simplifies time and temperature programming Easy to read LCD with improved contrast Lighted display for easier low light viewing Permanent program retention during power loss Setpoint hold, simple setup menu to activate optional features Soft touch keypad, easy access battery compartment Fast (FA) or slow (SL) heating cycle anticipation Easy to wire push-connect color-coded terminals Compressor lockout protection, electric heat option, millivolt compatible Display temperature recalibration (+/- 4 deg F) Ignition module reset
WHITE-RODGERS™ 1F89-211-B9442 Thermostat, 0 to 30 VAC, 0.05 to 1.5 A, (2) AA Alkaline Battery, 2 Heat/1 Cool
BrandWHITE-RODGERS™
MFG #1F89-0211
Keller #822257
My Part ##
Last Ordered#
$148.13 / ea
