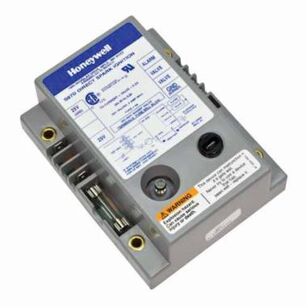

Honeywell S87J1034/U Direct Spark Ignition Control Module, 24 VAC, 2 A, 60 Hz
Honeywell S87J1034/U Direct Spark Ignition Control Module, 24 VAC, 2 A, 60 Hz
Honeywell Direct Spark Ignition Control Module, Model: S87J, 24 VAC, 2 A, 60 Hz, 21 s (Ignition Trial), 21 s (Lockout Time), 30 s (Pre Purge) Time Delay, 21 s Timing, -40 to 175 deg F, 1-15/16 in L x 4-1/16 in W x 5-1/4 in H, For Use With: Gas Fired Furnaces, Boilers and Other Heating Appliances, Additional Information: 30 s Pre Purge Time
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$948.94Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Additional Information30 s Pre Purge Time
Amperage Rating2
ApplicationGas Fired Furnace Applications
Dimensions1-15/16 " L x 4-1/16 " W x 5-1/4 " H
Frequency Rating60
IndustryHVAC
ModelS87J
Suitable For Use WithGas Fired Furnaces, Boilers and Other Heating Appliances
Temperature Rating-40 to 175
Time Delay21 s (Ignition Trial), 21 s (Lockout Time), 30 s (Pre Purge)
Timing Range21
Voltage Rating24
Additional Information
CSA 112491
Features & Benefits
- Control ignition sequence and gas control operation Generate high voltage potential for main burner ignition Lockout after one trial for ignition if main burner fails to ignite Reset from thermostat after lockout Ignition sequence - single trial for main burner ignition (then shut down and lockout) Flame failure response time 0.8 sec at 5 uA Use modules (except S87C) with any combination gas control designed for direct spark applications and rated 2 A or less
Honeywell S87J1034/U Direct Spark Ignition Control Module, 24 VAC, 2 A, 60 Hz
BrandHoneywell
MFG #S87J1034/U
Keller #823191
