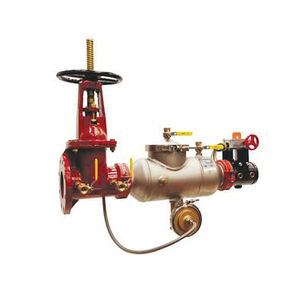

Apollo® RP4A Series 4A-203-A2F Reduced Pressure Backflow Preventer With Ball Valve and SAE Threaded Test Cocks, 1/2 in
Apollo® RP4A Series 4A-203-A2F Reduced Pressure Backflow Preventer With Ball Valve and SAE Threaded Test Cocks, 1/2 in
Apollo® Reduced Pressure Backflow Preventer With Ball Valve and SAE Threaded Test Cocks, RP4A Series, 1/2 in Nominal, Flanged Connection, Full Port, 175 psig Pressure, Media: Water, 7-3/8 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Top Mounting, Material Standard: C84400, Bronze Body, Lead-Free/Contains Lead: Contains Lead, 33 to 180 deg F, Dimensions: 10-7/8 in L x 7-1/8 in H x 2-7/8 in D, Domestic/Import: Domestic, Additional Information: 300 Stainless Steel Spring, Bronze Shut-Off, Testcocks, Chloramine-Resistant EPDM O-ring, Chloramine-Resistant Silicone Seat Disc, Glass Filled PPO Check Module, Nitrile and Nylon Diaphragm, Stainless Steel Ball Valve
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,746.16 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information300 Stainless Steel Spring, Bronze Shut-Off, Testcocks, Chloramine-Resistant EPDM O-ring, Chloramine-Resistant Silicone Seat Disc, Glass Filled PPO Check Module, Nitrile and Nylon Diaphragm, Stainless Steel Ball Valve
ApplicationFor potable water, heating, cooling, residential, fire protection, datacenters, utility and industry
Body MaterialBronze
Connection TypeFlanged
Dimensions10-7/8 " L x 7-1/8 " H x 2-7/8 " D
Domestic/ImportDomestic
IncludesStandard Y-Strainer
IndustryPlumbing
Inlet to Outlet Length7-3/8
Material StandardC84400
MediaWater
Mounting TypeTop
Nominal Size1/2
Port TypeFull
Pressure Rating175
SeriesRP4A Series
Temperature Rating33 to 180
Top to Inlet Center3-1/4
Warranty5 Year
Additional Information
ASSE 1013-2011|AWWA C511|CSA B64.4|Federal Public Law 111-380|NSF/ANSI 61 Water Quality|NSF/ANSI 372
Features & Benefits
- Low pressure loss Captured spring cartridge check valves Compact, yet easy-to-maintain Ball valve shut-off with stainless steel handles and nuts standard Top access for fast testing and maintenance Threaded testcock protectors Corrosion-resistance No special tools are required Chloramine-resistant elastomers Designed, cast, machined, assembled and tested in the USA
Documents
Marketing Information
The Apollo® model DC4A and DCLF4A Series lead-free and non-lead-free double check valves prevent contamination of the potable water supply due to back siphonage or back pressure from substances that are objectionable to the potable water supply, but non-health hazards. The top accessed modular check valve cartridges provide captured springs, replaceable seats and reversible silicone seat discs. This made in America assembly features ball valve shut-off with stainless steel handles and nuts as standard and carries the 5 years Apollo® factory warranty.
Apollo® RP4A Series 4A-203-A2F Reduced Pressure Backflow Preventer With Ball Valve and SAE Threaded Test Cocks, 1/2 in
BrandApollo®
MFG #4A203A2F
Keller #823526
