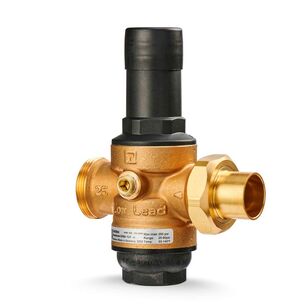

resideo DS06 Series DS06-100-SUS-LF/U Pressure Regulating Valve, 1/2 in, FNPT x Union, 250 psi, Bronze, Lead-Free
resideo DS06 Series DS06-100-SUS-LF/U Pressure Regulating Valve, 1/2 in, FNPT x Union, 250 psi, Bronze, Lead-Free
resideo Pressure Regulating Valve, DS06 Series, 1/2 in Nominal, FNPT x Union Connection, 250 psi, Bronze, Lead-Free, 140 deg F, 3-10/64 in L x 5-53/64 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$237.21Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
Brandresideo
Connection TypeFNPT x Union
Dimensions3-10/64 " L x 5-53/64 " H
MaterialBronze
Nominal Size1/2
Pressure Rating250
SeriesDS06 Series
Temperature Rating140
Shipping Dimensions (L x W x H)7.63" x 4.88" x 3"
Additional Information
ASSE 1003-2020|IAPMO Listed|CSA B356-10|Low-Lead Compliant|NSF 61/372|UPC Listed
Features & Benefits
- Built-in dial Set®, no gauge is needed to install or set static pressure Non-corroding unitized cartridge, contains all working parts and is easily replaceable Outlet adjustment range of 25 to 90 psi make it suitable for household, commercial, industrial and turf and irrigation applications Install it just about anywhere The internal and external threading allows for use in thread by thread, single union or double-union configurations 1/4 in NPT tap accessible from both sides to validate output Built-in strainer to simplify maintenance
Documents
Marketing Information
The DS06 dial Set® pressure regulating valve from Resideo is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
resideo DS06 Series DS06-100-SUS-LF/U Pressure Regulating Valve, 1/2 in, FNPT x Union, 250 psi, Bronze, Lead-Free
Brandresideo
MFG #DS06-100-SUS-LF/U
Keller #824774
