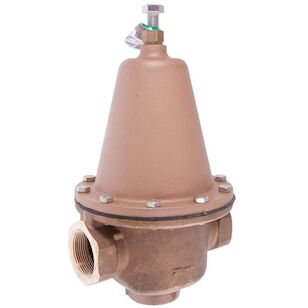

1 1/4 IN High Capacity Lead Free Water Pressure Reducing Valve NPT Female Inlet and Outlet Low Pressure Range 10-35 psi
1 1/4 IN High Capacity Lead Free Water Pressure Reducing Valve NPT Female Inlet and Outlet Low Pressure Range 10-35 psi
1 1/4 IN High Capacity Lead Free Water Pressure Reducing Valve NPT Female Inlet and Outlet Low Pressure Range 10-35 psi
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,993.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi10 to 35
Depth8.5"
Disc MaterialEPDM
Height9.63"
IndustryPlumbing
Inlet Connection Size1-1/4"
Inlet Connection TypeFemale Threaded
Inlet Thread TypeNPT
MaterialLead Free Cast Copper Silicon Alloy
Maximum Temperature Deg F160
Maximum Working Pressure Psi300
Minimum Temperature Deg F33
Outlet Connection Size1-1/4"
Outlet Connection Thread TypeNPT
Outlet Connection TypeFemale Threaded
Prop 65 WarningYes
SeriesLF223
Standard Reduced Pressure Setting Psi50
StrainerYes
Thermal Expansion BypassYes
Valve StyleStandard
Weight8.2 lbs.
Width4.5"
Shipping Dimensions (L x W x H)8.5" x 4.5" x 9.63"
Features & Benefits
- NPT threaded female inlet by NPT threaded female outlet
- Lead free cast copper silicon alloy body construction
- Low pressure range 10 to 35 psi (5.27 to 8.79 bar)
- Enlarged diaphragm, spring cage and seat orifice for high capacity performance
- Listed by IAPMO and NSF 61
Documents
Marketing Information
This 1 1/4 inch high capacity lead free water pressure reducing valve is used in low pressure applications and is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features a lead free cast copper silicon alloy body construction, NPT threaded female inlet and outlet connections, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for high capacity performance. This valve can be used for accessible outdoor waterworks or pit installations. The low pressure range is 10 to 35 psi (69 to 241 kPa).
1 1/4 IN High Capacity Lead Free Water Pressure Reducing Valve NPT Female Inlet and Outlet Low Pressure Range 10-35 psi
BrandWATTS®
MFG #0298558
Keller #827548
