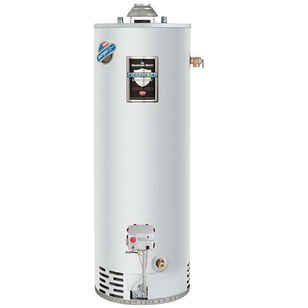

Bradford White® RG230T6N Gas Water Heater, 30 gal, 32000 Btu/hr, 9.4 kW, Natural Gas
Bradford White® RG230T6N Gas Water Heater, 30 gal, 32000 Btu/hr, 9.4 kW, Natural Gas
Bradford White® Gas Water Heater, 30 gal Capacity, 32000 Btu/hr, 9.4 kW, 60 gal First Hour Delivery, 0.6 Energy Factor, 34 gph Recovery Rate, 3 in, 4 in Vent, Atmospheric Vent, NPT Connection, 150 psi, Recovery Efficiency: 80 %, Floor Mounting, Natural Gas Fuel, Piezo Ignition, 160 deg F, 18 in Dia x 59-3/4 in H x 21-1/2 in D, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBradford White®
BTU Rating32000
Capacity30
Connection TypeNPT
Dimensions18 " Dia x 59-3/4 " H x 21-1/2 " D
Domestic/ImportDomestic
Energy Factor0.6
First Hour Delivery60
Fuel TypeNatural Gas
Ignition TypePiezo
Mounting TypeFloor
Power Rating9.4
Pressure Rating150
Recovery Efficiency80
Recovery Rate34
Temperature Rating160
Vent Size3 ", 4 ""
Vent TypeAtmospheric
Shipping Dimensions (L x W x H)21.25" x 18.75" x 58"
Additional Information
ANSI Z21.10.3-2019|ASHRAE 90.1b|CEC Compliant|CSA 4.3-2019
Features & Benefits
- Intelligent gas control with proven millivolt powered technology Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels An exclusive green LED light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting Flashing green LED provides positive indication that pilot is on High-strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve Advanced ScreenLok® technology flame arrestor is designed to prevent ignition of flammable vapors outside of the water heater Proven and reliable bi-metallic switch prevents burner and pilot operation in case of ongoing flammable vapors burning inside of the combustion chamber or restricted air flow Maintenance-free, no regular cleaning of air inlet openings or flame arrestor is required under normal conditions Sight window offers a view into the combustion chamber to observe the operation of the pilot and burner Factory installed Hydrojet® total performance system Tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water Non-CFC foam insulation covers the sides and top of tank, reducing the amount of heat loss Pedestal base, factory installed heat traps Protective magnesium anode rods 3 x 4 in snaplock draft diverter Durable tamper-proof design low restriction brass drain valve
