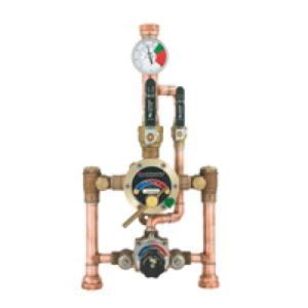

LEONARD® TM-820B-LF-DT Next Generation High-Low Assembly, 1 x 1-1/4 in Nominal, 1 to 89 gpm, 125 psi, 120 deg F
LEONARD® TM-820B-LF-DT Next Generation High-Low Assembly, 1 x 1-1/4 in Nominal, 1 to 89 gpm, 125 psi, 120 deg F
LEONARD® Next Generation High-Low Assembly, 1 x 1-1/4 in Nominal, 125 psi, 1 to 89 gpm Flow Rate, Bi-Metal Body, Finish: Rough Bronze, 120 deg F, 23 in H x 14-1/2 in W x 8 in D, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,730.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLEONARD®
Body MaterialBi-Metal
Dimensions23 " H x 14-1/2 " W x 8 " D
Domestic/ImportDomestic
FinishRough Bronze
Flow Rate1 to 89
IndustryPlumbing
Nominal Size1 x 1-1/4
Pressure Rating125
Temperature Rating120
Additional Information
ASSE 1017 Specified|CSA Certified
Features & Benefits
- Large type TM thermostatic water mixing valve, adjustable high-temperature limit stop, inlet check stops, wall support, outlet ball valve Small type TM thermostatic water mixing valve, adjustable high-temperature limit stop, inlet check stops, outlet ball valve Color coded dial thermometer (0 to 140 deg F, -10 to 60 deg C) Inlet manifold piping Locking temperature regulators Factory assembled and tested
Documents
Marketing Information
Provide factory assembled and tested large type thermostatic water mixing valve, small type valve, DURA-trol® solid bi-metal thermostat (directly linked to valve porting to control the intake of hot and cold water and compensate for supply temperature or pressure fluctuations) with 10 years limited warranty, color-coded dials (hot cold with directional indicators), locking temperature regulator handles, adjustable limit stops set for 120 deg F, integral hot and cold supply checkstops, outlet ball valve shut-offs and color-coded dial thermometer, inlet piping manifold, factory pre-assembled and tested, rough bronze finish system shall provide full time standby service should one mixing valve require maintenance and shall be piped according to LEONARD® required piping method.
LEONARD® TM-820B-LF-DT Next Generation High-Low Assembly, 1 x 1-1/4 in Nominal, 1 to 89 gpm, 125 psi, 120 deg F
BrandLEONARD®
MFG #TM-820B-LF-DT
Keller #830930
My Part ##
Last Ordered#
$5,730.00 / ea
