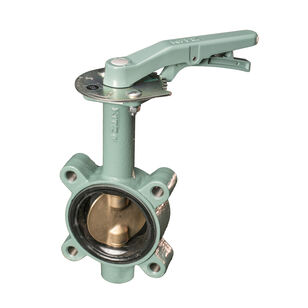

KITZ DJ Series 6123EL-400 Lug-Style Butterfly Valve, 4 in, Flanged, Ductile Iron, 250 psi
KITZ DJ Series 6123EL-400 Lug-Style Butterfly Valve, 4 in, Flanged, Ductile Iron, 250 psi
KITZ Lug-Style Butterfly Valve, DJ Series, 4 in Nominal, Flanged Connection, 250 psi, Pressure Class: 125 lb, 150 lb, Gas, Oil, Water Media, Locking Lever Handle Actuator, 8.93 in Top to Inlet Center, Ductile Iron Body, EPDM Seat, Stainless Steel Stem, Aluminum Bronze Disc, Aluminum Bronze/EPDM/Stainless Steel Trim, Aluminum Handle, EPDM/NBR/PTFE Softgoods, Locking Lever Handle Operator, 671 Cv Flow Coefficient (Cv), -20 to 225 deg F, Material Standard: ASTM A276, ASTM A536
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$248.00Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandKITZ
Actuator TypeLocking Lever Handle
Body MaterialDuctile Iron
Connection TypeFlanged
Disc MaterialAluminium Bronze
Flow Coefficient (Cv)671
Handle MaterialAluminium
IndustryPlumbing
Material StandardASTM A276, ASTM A536
MediaGas, Oil, Water
Nominal Size4
Operator TypeLocking Lever Handle
Pressure Class125 lb, 150 lb
Pressure Rating250
Seat MaterialEPDM
SeriesDJ Series
Softgoods MaterialEPDM/NBR/PTFE
Stem MaterialStainless Steel
Temperature Rating-20 to 225
Top to Inlet Center8.93
Trim MaterialAluminum Bronze/EPDM/Stainless Steel
Additional Information
ISO 5211|MSS-SP-67, API-609 Cat A|NSF/ANSI 372
Features & Benefits
- Molded in seat
Documents
KITZ DJ Series 6123EL-400 Lug-Style Butterfly Valve, 4 in, Flanged, Ductile Iron, 250 psi
BrandKITZ
MFG #6123EL-400
