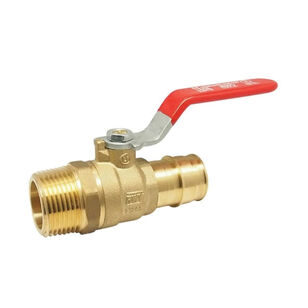

RWV® ECO-VALVE 5018AB Series 5018AB-3/4 Transition Ball Valve, 3/4 in, PEX x MNPT, Brass, 400 psi
RWV® ECO-VALVE 5018AB Series 5018AB-3/4 Transition Ball Valve, 3/4 in, PEX x MNPT, Brass, 400 psi
RWV® ECO-VALVE Transition Ball Valve, 5018AB Series, 3/4 in Nominal, PEX x MNPT Connection, Full Port, 400 psi, Gas, Oil, Water Media, 1/2 in Orifice, 2.93 in Inlet to Outlet Length, 1.77 in Top to Inlet Center, Handle Operator, Material Standard: ASME B1.20.1, ASTM A36, ASTM B927 C27453, ASTM F1960, Brass Body, PTFE Seat, Brass Stem, PTFE Trim, Steel Handle, Brass Ball, NBR/PTFE Softgoods, Lead-Free, 15 to 160 deg F, 2.93 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$35.97 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
ApplicationFor PEX tubing
Ball MaterialBrass
Body MaterialBrass
Connection TypePEX x MNPT
Dimensions2.93 " L
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.93
Lead-FreeYes
Material StandardASME B1.20.1, ASTM A36, ASTM B927 C27453, ASTM F1960
MediaGas, Oil, Water
Nominal Size3/4
Operator TypeHandle
Orifice Size1/2
Port TypeFull
Pressure Rating400
Seat MaterialPTFE
Series5018AB Series
Softgoods MaterialNBR/PTFE
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center1.77
Trim MaterialPTFE
Additional Information
California AB1953|CSA B125.3|cTLus Listed|NSF/ANSI 61, 372
Features & Benefits
- Virgin PTFE seats Double NBR O-ring packing Blowout-proof stem
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
