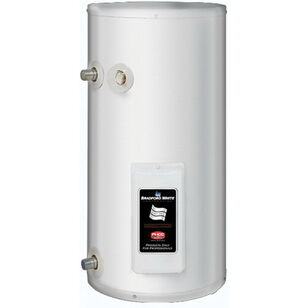

Bradford White® RE120U6-1NAL Electric Water Heater, 19 gal, 1 ph, 120 V
MFG #RE120U6-1NAL
Item #833714
Mfr. Part #RE120U6-1NAL
UPC #671632798780
Bradford White® Electric Water Heater, 19 gal Capacity, 7 gph Recovery Rate, 1 Elements, 1500 to 6000 W Element Wattage, 120 V, 1 ph Phase, NPT Connection, 3/4 in Connection, 150 psi, Floor Mounting, 18 in Dia x 24-7/16 in H, Domestic/Import: Domestic, Screw-Type Immersion Element, Copper Element, Additional Information: Electric-Resistance Fuel
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
Call for Price / ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandBradford White®
Additional InformationElectric-Resistance Fuel
Capacity19
Connection Size3/4"
Connection TypeNPT
Dimensions18 " Dia x 24-7/16 " H
Domestic/ImportDomestic
Element MaterialCopper
Element TypeScrew-Type Immersion
Element Wattage1500 to 6000
Mounting TypeFloor
Number of Elements1
Phase1
Pressure Rating150
Recovery Rate7
Voltage Rating120
Shipping Dimensions (L x W x H)19.88" x 18.88" x 25.63"
Additional Information
CSA Certified|cULus Listed|UL 174
Features & Benefits
Fast-acting surface-mount thermostat with high-limit energy cut-off (manual reset) for safety
Transfers heat directly and efficiently to the water. Screw-in style element
An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining
1 in (25 mm) non-CFC foam insulation covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies and jacket rigidity
3/4 in (19 mm) NPT factory installed true dielectric fittings extend water heater life and simplify water line connections, located on the side for easier installation (fittings packaged separately inside carton)
Provides added protection against corrosion for long-term, trouble-free service
