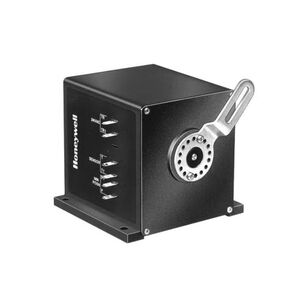

Honeywell M8405A1006/U Damper Actuator, 24 VAC, 90 sec Timing, Plastic
Honeywell M8405A1006/U Damper Actuator, 24 VAC, 90 sec Timing, Plastic
Honeywell Damper Actuator, 24 VAC, 50/60 Hz, 8 V-A Driving, 3 V-A Holding VA, 90 sec Timing, Plastic, 25 in-lb, 40 in-lb Breakaway Torque, -30 to 150 deg F Storage, -25 to 125 deg F Operating, 5 - 95% RH Non-Condensing Humidity, 5 in W x 4-1/2 in H x 5-3/16 in D, 3-Position Control Signal, Foot Mounting
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$784.79Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
ApplicationFor use with model W7459C solid state economizer logic module
Control Signal3-Position
Dimensions5 " W x 5-3/16 " D x 4-1/2 " H
Frequency Rating50/60
Humidity Rating5 to 95% RH Non-Condensing
MaterialPlastic
Mounting Type'
Temperature Rating-30 to 150 deg F Storage, -25 to 125 deg F Operating
Timing Range90
Torque Rating25 "-lb, 40 "-lb Breakaway
VA Rating8 VA Driving, 3 VA Holding
Voltage Rating24
Additional Information
UL 94-5V Flammability Classification, UL Listed, E4436, Guide XAPX
Features & Benefits
- Synchronous motor Quiet, high efficiency drive motor Spring returns motor shaft to normal position in the event of power failure High impact, glass-fiber reinforced plastic case is rugged, lightweight and corrosion-resistant Uses Q298B linkage V2 level vibration Quick connect terminals electrical connections Fixed stroke 90 deg max angle of rotation CCW rotation to open Spring return timing nominal - 18 sec (1) motor shaft Deadweight load on shaft power end - 15 lb maximum Fail safe mode spring return
Documents
Marketing Information
25 Inch-lb spring return damper actuators provide two-position, three-position, floating or modulating control of economizer systems, ventilation dampers and combustion air dampers used in residential or commercial HVAC equipment.
Honeywell M8405A1006/U Damper Actuator, 24 VAC, 90 sec Timing, Plastic
BrandHoneywell
MFG #M8405A1006/U
Keller #838867
