ASSE 1017 Specified|CSA Certified

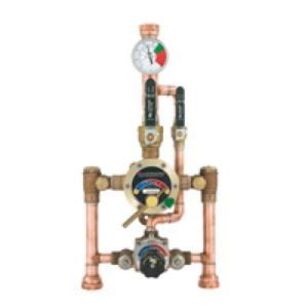

• Large type TM thermostatic water mixing valve, adjustable high-temperature limit stop, inlet check stops, wall support, outlet ball valve Small type TM thermostatic water mixing valve, adjustable high-temperature limit stop, inlet check stops, outlet ball valve Color coded dial thermometer (0 to 140 deg F, -10 to 60 deg C) Inlet manifold piping Locking temperature regulators Factory assembled and tested

Provide factory assembled and tested large type thermostatic water mixing valve, small type valve, DURA-trol® solid bi-metal thermostat (directly linked to valve porting to control the intake of hot and cold water and compensate for supply temperature or pressure fluctuations) with 10 years limited warranty, color-coded dials (hot cold with directional indicators), locking temperature regulator handles, adjustable limit stops set for 120 deg F, integral hot and cold supply checkstops, outlet ball valve shut-offs and color-coded dial thermometer, inlet piping manifold, factory pre-assembled and tested, rough bronze finish system shall provide full time standby service should one mixing valve require maintenance and shall be piped according to LEONARD® required piping method.
