113.1 sq-in Free Area

• Quality constructed from heavy-duty 26 ga galvanized steel An effective solution to chimney downdraft in windy areas Cap separates the wind stream as it flows over the cap, while the rotating hood is kept in proper position (relative to the wind) by the wind vane Air movement past the hood creates a partial vacuum in the flue, enhancing draft efficiency and helping to prevent downdrafts

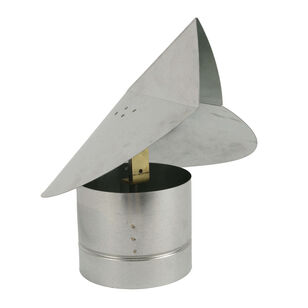

The Famco WDC wind directional chimney cap is designed to be an effective solution to chimney downdraft in windy areas. The cap separates the wind stream as it flows over the cap, while the rotating hood is kept in proper position (relative to the wind) by the wind vane. Air movement past the hood creates a partial vacuum in the flue, enhancing draft efficiency and helping to prevent downdrafts. Quality constructed from heavy-duty 26 ga galvanized steel. This product does not include a built-in bird screen. We recommend using Bostik high temp stainless anti-seize on the rotating bracket and cleaning creosote buildup to ensure cap functions correctly and is able to rotate without issues, this should be done annually or else as needed. The Famco WDC wind directional chimney cap is engineered to slip around the OD (outside diameter) of a single wall pipe. For double/triple wall pipe, we also offer our WCASS wind cap adapter which will fit inside an insulated, double or triple wall pipe to create a mount for your wind directional cap (sold separately). The Famco WDC wind directional chimney cap comes in a range of diameters from 5 to 14 in with heights ranging from 14-1/2 to 27 in. The Famco WDC wind Directional chimney cap is manufactured by Famco in the United States and comes with a 1-year warranty against product defects and workmanship.
