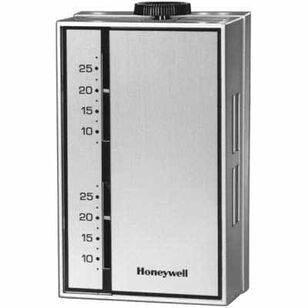

Honeywell T6052A1015/U Line Voltage Thermostat, 120-240 VAC, Non-Programmable Programmability, Hardwired Power Source
Honeywell T6052A1015/U Line Voltage Thermostat, 120-240 VAC, Non-Programmable Programmability, Hardwired Power Source
Honeywell Line Voltage Thermostat, 120-240 VAC, 50/60 Hz, Non-Programmable Programmability, Hardwired, 2 Stages, 2-Stage Heating or 2-Stage Cooling (System) Switch Position, SPDT Switch, 1-Stage: 16 A Full Load, 96 A Locked Rotor at 120 VAC, 8 A Full Load, 48 A Locked Rotor at 240 VAC, 2-Stage: 8 A Full Load, 48 A Locked Rotor at 120 VAC, 4 A Full Load, 24 A Locked Rotor at 240 VAC Contact Rating, Vapor Filled Dual Diaphragm Sensing Element, 2.5 deg F Heating, 3.2 deg F Cooling Differential Temperature, 46 to 84 deg F Temperature Settings, Vertical Mounting, Screw Terminal Connection, Tan, 5 in H x 3-1/8 in W x 1-5/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$690.73Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
ApplicationFor 2-stage heating or cooling, control fan coils, fans, motor starters, valves, contactors and circulator motors
ColorTan
Connection TypeScrew Terminal
Contact Rating1-Stage: 16 A Full Load, 96 A Locked Rotor at 120 VAC, 8 A Full Load, 48 A Locked Rotor at 240 VAC, 2-Stage: 8 A Full Load, 48 A Locked Rotor at 120 VAC, 4 A Full Load, 24 A Locked Rotor at 240 VAC
Differential Temperature2.5 deg F Heating, 3.2 deg F Cooling
Dimensions5 " H x 3-1/8 " W x 1-5/8 " D
Frequency Rating50/60
IncludesSlotted Cover and Extra Faceplate
IndustryHVAC
Mounting TypeVertical
Power SourceHardwired
ProgrammabilityNon-Programmable
Sensing ElementVapor Filled Dual Diaphragm
Stages2
Switch Position2-Stage Heating or 2-Stage Cooling (System)
Switch TypeSPDT
Temperature Settings46 to 84
Voltage Rating120-240
Additional Information
UN 2037, UL E4436, Guider XAPX, CSA LR1620 Certified
Features & Benefits
- Provide good line voltage comfort control Removable setpoint knob locks setpoint and prevents tamper With locking cover Receptacles, small, containing gas, 2.1 hazmat information
