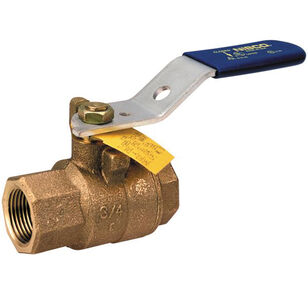

NIBCO® T-580-70-UL Series NL96028 2-Piece Ball Valve, 3/4 in, FIPT, Bronze, 250 psi
NIBCO® T-580-70-UL Series NL96028 2-Piece Ball Valve, 3/4 in, FIPT, Bronze, 250 psi
NIBCO® 2-Piece Ball Valve, T-580-70-UL Series, 3/4 in Nominal, FIPT Connection, Full Port, 250 psi, Fuel Oil, Gasoline, LP Gas Media, 2.94 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, 3/4 in Opening, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B371/B584, Bronze Body, Bronze Stem, Bronze Trim, PTFE Packing, Steel Handle, Bronze Ball, 6-1/4 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$145.60 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBronze
Body MaterialBronze
Connection TypeFIPT
Dimensions6-1/4 " L
Domestic/ImportDomestic
Handle MaterialSteel
Inlet to Outlet Length2.94
Material StandardASTM B371/B584
MediaFuel Oil, Gasoline, LP Gas
Nominal Size3/4
Opening Size3/4
Operator TypeQuarter-Turn Lever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating250
SeriesT-580-70-UL Series
Stem MaterialBronze
Top to Inlet Center2-1/4
Trim MaterialBronze
Warranty5 Year Limited
Shipping Dimensions (L x W x H)6.3"
Additional Information
ANSI/ASME B16.33|CGA 3.16|CSA Certified|cUL YSDT7|UL 842
Features & Benefits
- Valve pressure rating 250 psi non-shock LP gas per UL 842 Blowout-proof stem Dezincification-resistant
Marketing Information
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The valve is designed to be used on gasoline, fuel oil, LP gas and other flammable fluids. The two-piece valve features threaded ends for easy installation. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® Inc. 5 years 125% limited warranty.
