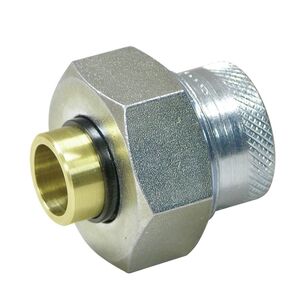

WATTS® LF3002 Series 0009872 Union Fitting, 3/4 in Solder x 1/2 in FNPT, 1-7/8 in, Brass
WATTS® LF3002 Series 0009872 Union Fitting, 3/4 in Solder x 1/2 in FNPT, 1-7/8 in, Brass
WATTS® Union Fitting, LF3002 Series, Union Fitting, 3/4 in Connection Size 1, Connection Type 1: Solder, 1/2 in Connection Size 2, Connection Type 2: FNPT, Solder|FNPT Connection, 1-7/8 in Length, Brass, Material Construction: Brass, 250 psi, 1-5/8 in Hex, For Use With: Gas and Water Pipings, Hot Water Storage Tanks, Processing Tanks, Steams, Water and Air Conditioners, 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$70.25 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Connection Size 13/4
Connection Size 21/2
Connection TypeSolder|FNPT
Connection Type 1Solder
Connection Type 2FNPT
Fitting TypeUnion
For use with:Gas and Water Pipings, Hot Water Storage Tanks, Processing Tanks, Steams, Water and Air Conditioners
Hex Size1-5/8
Length1-7/8
MaterialBrass
Material ConstructionBrass
Pressure Rating250
SeriesLF3002 Series
Temperature Rating180
Shipping Dimensions (L x W x H)1.625" x 1.63" x 1.85"
Features & Benefits
- Female iron pipe thread to reduced solder connection Designed and manufactured to the highest quality standards Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover Steel adapter and malleable iron nut Polysulfone insulator
Marketing Information
Series LF3002 lead-free dielectric unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and features a female iron pipe thread to reduced solder connection. It consists of a union nut, two tailpieces and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3002 is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas and water piping.
WATTS® LF3002 Series 0009872 Union Fitting, 3/4 in Solder x 1/2 in FNPT, 1-7/8 in, Brass
BrandWATTS®
MFG #0009872
Keller #844924
My Part ##
Last Ordered#
$70.25 / ea
