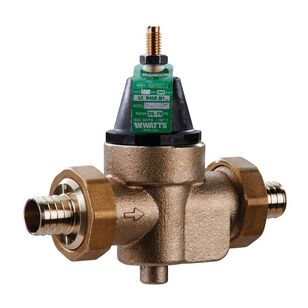

WATTS® LFN45B Series 0125319 Pressure Reducing Valve, 1 x 1 in Nominal, Union PEX x Union PEX, 33 to 180 deg F
WATTS® LFN45B Series 0125319 Pressure Reducing Valve, 1 x 1 in Nominal, Union PEX x Union PEX, 33 to 180 deg F
WATTS® Pressure Reducing Valve, LFN45B Series, 1 x 1 in Nominal, Union PEX x Union PEX Connection, 25 to 75 psi Adjustable, 300 psi Maximum Working, Water Media, Copper Silicon Body, Thermoplastic Seat, Elastomer Disc, Lead-Free, 33 to 180 deg F, 2-1/4 in D x 6-1/4 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$561.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicon
Connection TypeUnion PEX x Union PEX
Dimensions2-1/4 " D x 6-1/4 " H
Disc MaterialElastomer
IndustryPlumbing
Lead-FreeYes
MediaWater
Nominal Size1 x 1
Pressure Rating25 to 75 psi Adjustable, 300 psi Maximum Working
Seat MaterialThermoplastic
SeriesLFN45B Series
Temperature Rating33 to 180
Shipping Dimensions (L x W x H)5.625" x 7.38" x 2.63"
Additional Information
ASSE 1003|CSA B356|cUPC Listed|IAPMO Listed|NSF Certified
Features & Benefits
- Crimp double union end connections for PEX tubing Bypass valve controls thermal expansion pressure Sealed spring cage for accessible outdoor or pit installations
Documents
Marketing Information
This 1 in lead-free brass cartridge-style water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing components and reduce the water consumption for commercial, industrial and residential applications. It features a lead-free brass body, thermoplastic seat cartridge, crimp union end connections, reinforced diaphragm, and a bypass valve to control thermal expansion pressure. The reduced pressure-rating is set at 50 psi. The maximum working pressure is 400 psi and temperature range is 33 to 180 deg F.
WATTS® LFN45B Series 0125319 Pressure Reducing Valve, 1 x 1 in Nominal, Union PEX x Union PEX, 33 to 180 deg F
BrandWATTS®
MFG #0125319
Keller #844930
My Part ##
Last Ordered#
$561.00 / ea
