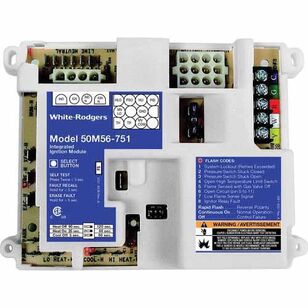

WHITE-RODGERS™ 50M56U-751 Integrated Furnace Control Kit, 25 VAC, 0.45 A, 50/60 Hz
WHITE-RODGERS™ 50M56U-751 Integrated Furnace Control Kit, 25 VAC, 0.45 A, 50/60 Hz
WHITE-RODGERS™ Integrated Furnace Control Kit, 25 VAC, 0.45 A, 50/60 Hz, 17 s (Warm Up Time), 30 s (Pre Purge), 60 min (Reset) Time Delay, -40 to 175 deg F, 7 in H x 5-1/4 in W x 1-1/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$422.11 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWHITE-RODGERS™
Amperage Rating0.45
Dimensions7 " H x 5-1/4 " W x 1-1/4 " D
Frequency Rating50/60
IndustryHVAC
Temperature Rating-40 to 175
Time Delay17 s (Warm Up Time), 30 s (Pre Purge), 60 min (Reset)
Voltage Rating25
Additional Information
CSA Certified
Features & Benefits
- System diagnostic LED with fault recall Low-speed continuous fan option 120 VAC igniter output, electronic air cleaner output, 120 or 24 VAC humidifier output Self-test installation routine 1-1/2 A at 25 VAC 50/60 Hz 0.6 pf valve relay, 6 A at 120 VAC 50/60 Hz (resistive) igniter relay, 2.2 FLA - 3.5 LRA at 120 VAC inducer relay, 14.5 FLA - 25 LRA at 120 VAC circulator relay
WHITE-RODGERS™ 50M56U-751 Integrated Furnace Control Kit, 25 VAC, 0.45 A, 50/60 Hz
BrandWHITE-RODGERS™
MFG #50M56U-751
Keller #845192
My Part ##
Last Ordered#
$422.11 / ea
