1/2 IN Lead Free Hot Water Extender Mixing Valve Solder
1/2 IN Lead Free Hot Water Extender Mixing Valve Solder
1/2 IN Lead Free Hot Water Extender Mixing Valve Solder
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$428.50Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Buy American Act CompliantYes
Cold Inlet Temperature Range40 to 85 deg F
Cold Water Inlet Connection TypeSocket
Cold Water Inlet Size0.5''
Depth2.5"
FinishRough Bronze
Flow Rate (GPM)0.5 to 4.5 gal/min
Height4"
Hot Inlet Temperature Range120 to 160 degree F
Hot Water Inlet Connection Size0.5''
Hot Water Inlet Connection TypeSocket
IndustryPlumbing
MaterialLead Free Brass
Maximum Pressure Differential25 Percent
Minimum Differential Temperature Deg F5
Minimum Static Pressure Psi30
Outlet Connection Size1/2"
Outlet Connection TypeSocket
Prop 65 WarningYes
SeriesLF70A
Temperature Adjustment Range120 to 160 deg F
Weight0.56 lbs.
Width1.56"
Shipping Dimensions (L x W x H)2.5" x 1.56" x 4"
Features & Benefits
- Lead free brass body construction
- Solder connections
- Thermostat assembly is easy to maintain, remove and replace
- Dial adjustment cap
Documents
Marketing Information

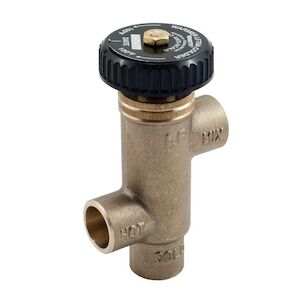

This 1/2 inch hot water extender mixing valve is designed for domestic water supply systems and recommended for tankless heater, water heater, and solar applications installed at or near the boiler or hot water heater. It consists of a lead free brass body, solder connections, thermostat, stainless steel springs, and dial adjustment cap. The hydraulically operated thermostat opens a spring loaded check in the cold water inlet which allows cold and hot water to mix and can be replaced as a unit. The temperature range is 120 to 160 degrees F (49 to 71 degrees C).
1/2 IN Lead Free Hot Water Extender Mixing Valve Solder
BrandWATTS®
MFG #0559129
Keller #845198
